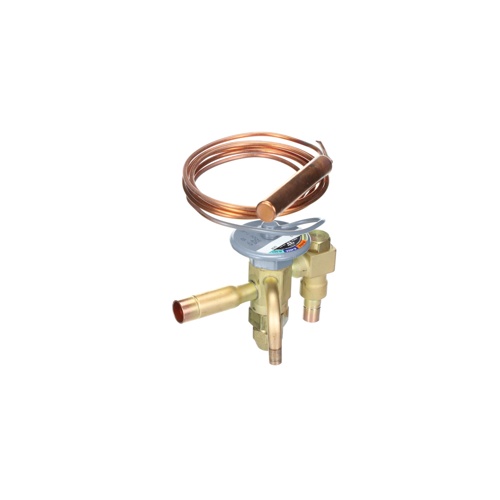

Sporlan Controls 169414 R404A 1-Ton TXV with 5′ External Equalizer

Description

Sporlan Controls 169414 — R404A Thermostatic Expansion Valve Overview

The Sporlan Controls 169414 is a thermostatic expansion valve (TXV) engineered for use with R404A refrigerant in 1-ton capacity refrigeration systems. Featuring a 5-foot external equalizer line, this valve delivers precise refrigerant metering and superheat control, helping maintain system efficiency and protecting the compressor from liquid slugging.

Key Features

• Designed for R404A refrigerant — a common choice in commercial refrigeration and low-temperature applications
• 1-ton (12,000 BTU/hr) nominal capacity for properly sized system matching
• 5-foot external equalizer line for accurate sensing across evaporator pressure drop
• Thermostatic expansion valve (TXV) design provides automatic superheat regulation
• Sporlan quality construction for long service life and dependable performance
• External equalizer connection compensates for refrigerant pressure drop across the evaporator, improving efficiency

Application

The Sporlan 169414 TXV is ideal for commercial refrigeration systems, walk-in coolers, reach-in cases, and other low- to medium-temperature applications utilizing R404A refrigerant. The external equalizer design is particularly suited for evaporators with significant pressure drop, ensuring stable superheat control across varying load conditions.

Why Choose Sporlan?

Sporlan Controls, a Parker Hannifin brand, is a globally recognized leader in refrigeration and air conditioning controls. Their TXV product line is trusted by HVAC/R professionals for consistent performance, tight manufacturing tolerances, and broad application compatibility.

Specifications

• SKU: 169414
• Brand: Sporlan Controls
• Refrigerant: R404A
• Capacity: 1 Ton (12,000 BTU/hr)
• Equalizer Type: External
• Equalizer Line Length: 5 feet
• Valve Type: Thermostatic Expansion Valve (TXV)
