Description

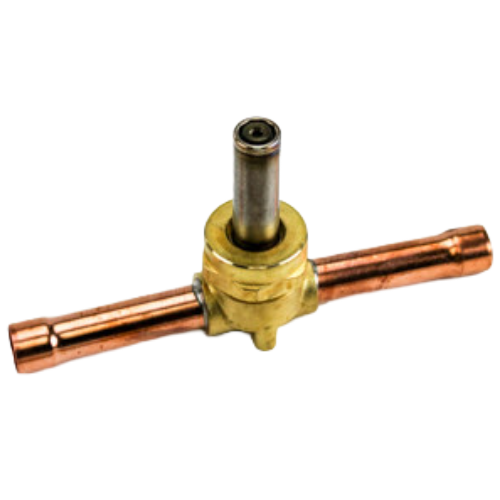

Sporlan Controls E2S120-HP Normally Closed Solenoid Valve
The Sporlan Controls 4101-00 E2S120-HP is a high-pressure, normally closed (NC) solenoid valve engineered for reliable refrigerant flow control in commercial and industrial refrigeration systems. Designed for use with R-410A refrigerant, this valve delivers the precision shutoff performance that HVAC/R professionals demand in demanding applications.
Key Features
- Model: E2S120-HP — E2 Series high-pressure solenoid valve
- Connection type: 1/4″ sweat (solder) connections for secure, leak-free installation
- Normally Closed (NC) operation — valve closes upon de-energization for fail-safe refrigerant shutoff
- Rated for R-410A refrigerant service
- 120V coil voltage for compatibility with standard control circuits
- High-pressure (HP) rated body construction for R-410A system pressures
- Compact E2 Series design suitable for tight installation spaces
Application
The E2S120-HP solenoid valve is ideal for liquid line, suction line, and hot gas bypass applications in refrigeration and air conditioning systems operating with R-410A. The normally closed design ensures refrigerant flow is automatically interrupted when the coil is de-energized, providing an added layer of system protection during power loss or shutdown events.
Why Choose Sporlan Controls
Sporlan Controls, a Parker Hannifin brand, is a globally recognized leader in refrigeration and air conditioning controls. Their solenoid valves are built to exacting standards, offering long service life, low pressure drop, and dependable performance across a wide range of refrigerants and operating conditions.
Specifications
- SKU: 4101-00
- Model Number: E2S120-HP
- Brand: Sporlan Controls (Parker-Sporlan)
- Connection Size: 1/4″
- Connection Type: Sweat (Solder)
- Valve Action: Normally Closed (NC)
- Refrigerant Compatibility: R-410A
- Coil Voltage: 120V
- Pressure Rating: High Pressure (HP)
