Description

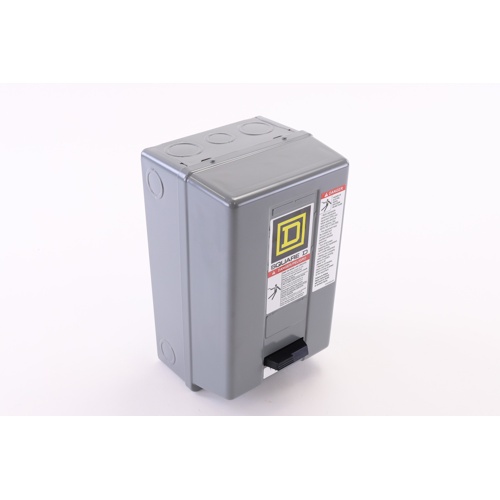

The Schneider Electric (Square D) 8536SAG12V08 is a Three-Pole Polyphase AC Magnetic NEMA Motor Starter engineered for reliable motor control in commercial and industrial HVAC and mechanical systems. Housed in a NEMA Type 1 General Purpose Enclosure, this starter provides dependable protection and switching performance in a compact NEMA Size 00 footprint.
Designed for use with standard 208V AC, 60Hz power systems, the 8536SAG12V08 delivers a 9-amp continuous rating, making it well-suited for small motor loads such as fans, pumps, compressors, and other HVAC equipment commonly found in light commercial applications.
Key Features
- Coil Voltage: 208V AC, 60Hz
- Continuous Amp Rating: 9A
- NEMA Size: 00
- Pole Configuration: Three-Pole, Polyphase
- Starter Type: AC Magnetic
- Enclosure Type: NEMA Type 1 General Purpose
- Standard: NEMA rated construction for consistent performance and interchangeability
Application
The 8536SAG12V08 is ideal for controlling small three-phase motors in HVAC, refrigeration, and building mechanical systems. Its NEMA Type 1 enclosure is suited for indoor installations in clean, dry environments such as mechanical rooms and electrical panels.
Why Choose Square D Motor Starters?
Schneider Electric’s Square D line is a trusted name in motor control, offering robust construction, proven reliability, and broad compatibility with standard NEMA motor control centers and panel boards. The magnetic starter design ensures smooth motor starting, overload protection capability, and long service life in demanding applications.
