Description

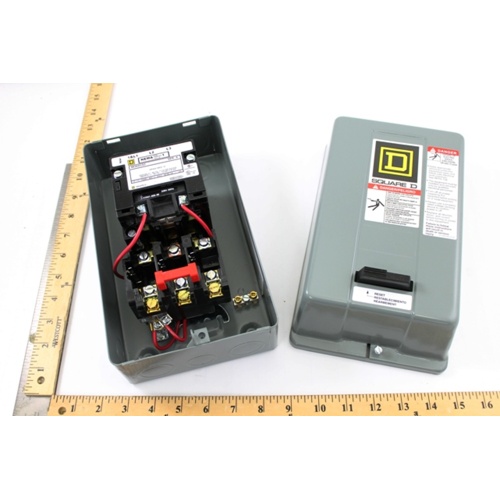

The Schneider Electric (Square D) 8536SCG3V08 is a robust, industrial-grade AC magnetic motor starter engineered for reliable three-phase motor control in commercial and industrial HVAC and mechanical systems. Housed in a NEMA Type 1 general purpose enclosure, this unit is built to protect against accidental contact and light dust in indoor environments, making it well-suited for equipment rooms, mechanical spaces, and commercial facilities.
Key Features
- NEMA Size 1 magnetic motor starter for three-phase polyphase AC motor applications
- 208V AC, 60Hz operating coil for compatibility with standard commercial power supplies
- 27-amp continuous current rating for dependable, full-load motor operation
- Three-pole configuration for complete polyphase motor protection and control
- NEMA Type 1 general purpose enclosure for indoor installation in clean environments
- Magnetic contactor design provides reliable, low-maintenance motor switching
- Overload relay protection guards connected motors against damaging overcurrent conditions
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 8536SCG3V08
- Coil Voltage: 208V AC
- Coil Frequency: 60Hz
- Continuous Amp Rating: 27A
- NEMA Starter Size: 1
- Pole Configuration: Three-Pole (3-Phase)
- Motor Type Compatibility: Polyphase AC
- Enclosure Type: NEMA Type 1 General Purpose
- Application: Indoor use
Applications
- Commercial HVAC compressor and fan motor control
- Chiller, air handler, and rooftop unit motor switching
- Pump and blower motor starters in mechanical rooms
- Industrial and light commercial three-phase motor control panels
The Square D 8536SCG3V08 is a trusted solution for contractors and engineers who demand proven performance in motor control. Its NEMA Type 1 enclosure and 27-amp continuous rating make it an ideal fit for a wide range of HVAC and building mechanical system applications.
