Description
Overview

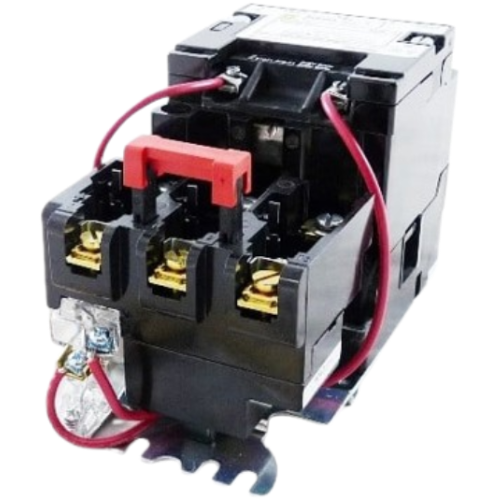

The Schneider Electric (Square D) 8536SCO3V03 is a heavy-duty, three-pole polyphase AC magnetic NEMA motor starter engineered for dependable motor control in commercial and industrial HVAC applications. Built to NEMA Size 1 standards, this starter delivers robust performance and long service life in demanding environments.
Key Features
- NEMA Size 1 motor starter for reliable motor control
- Three-pole polyphase configuration for three-phase AC motor applications
- 27-amp continuous amp rating for sustained load handling
- 220VAC / 240VAC coil voltage with 50/60Hz compatibility for broad application flexibility
- AC magnetic design provides smooth, consistent motor starting and stopping
- Built to NEMA standards for quality and interchangeability
- Trusted Square D / Schneider Electric engineering for long-term reliability
Specifications
- SKU: 8536SCO3V03
- Brand: Schneider Electric (Square D)
- Starter Type: AC Magnetic NEMA Motor Starter
- NEMA Size: 1
- Poles: Three-Pole (3-Pole) Polyphase
- Continuous Amp Rating: 27A
- Coil Voltage: 220VAC / 240VAC
- Frequency: 50/60 Hz
Application
The 8536SCO3V03 is ideal for controlling three-phase motors in HVAC systems, including air handling units, chiller pumps, cooling tower fans, and other commercial motor-driven equipment. Its NEMA Size 1 rating makes it suitable for motors up to the corresponding horsepower range at standard voltages, providing a cost-effective and code-compliant motor control solution.
