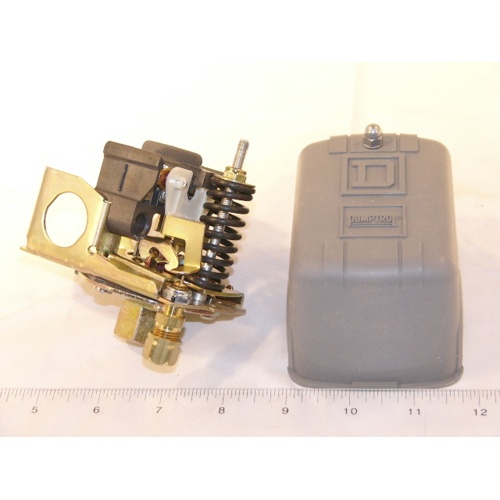

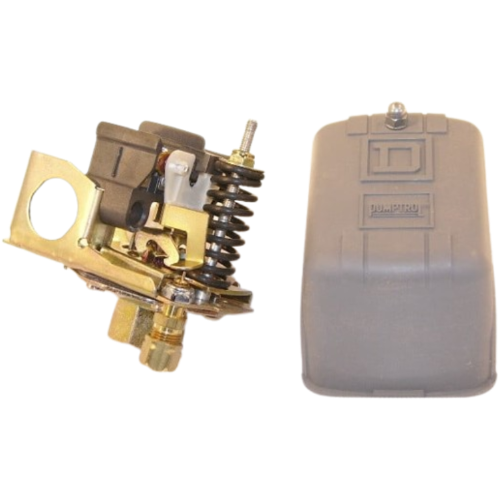

Schneider Electric (Square D) 9013FHG12J27X 70-150 PSI 2-Pole Pressure Switch with PRV

Description

The Schneider Electric (Square D) 9013FHG12J27X is a heavy-duty, 2-pole electromechanical pressure switch from the trusted Square D FHG Series, engineered for reliable automatic pressure control in commercial and industrial HVAC, compressor, and fluid-handling systems. Featuring a built-in Pressure Relief Valve (PRV) and factory-set cut-in/cut-out points of 70 PSI ON and 100 PSI OFF within a 70–150 PSI operating range, this switch delivers consistent, repeatable performance in demanding applications.

Key Features

• 2-Pole switching configuration for versatile circuit control
• Pressure range: 70–150 PSI
• Factory set points: 70 PSI cut-in (ON) / 100 PSI cut-out (OFF)
• Integrated Pressure Relief Valve (PRV) for added system protection
• Square D FHG Series construction — built for long service life
• Designed for compressor, pump, and HVAC pressure control applications
• Schneider Electric quality and engineering reliability

Application

The 9013FHG12J27X is ideal for use in air compressor systems, water pump controls, and other pressure-sensitive HVAC and mechanical systems where automatic start/stop pressure switching is required. The integrated PRV provides an additional layer of overpressure protection, reducing the need for separate relief valve components.

Product Specifications

• SKU: 9013FHG12J27X
• Brand: Schneider Electric (Square D)
• Series: 9013 FHG
• Poles: 2
• Pressure Range: 70–150 PSI
• Cut-In (ON) Set Point: 70 PSI
• Cut-Out (OFF) Set Point: 100 PSI
• Includes: Integral Pressure Relief Valve (PRV)
