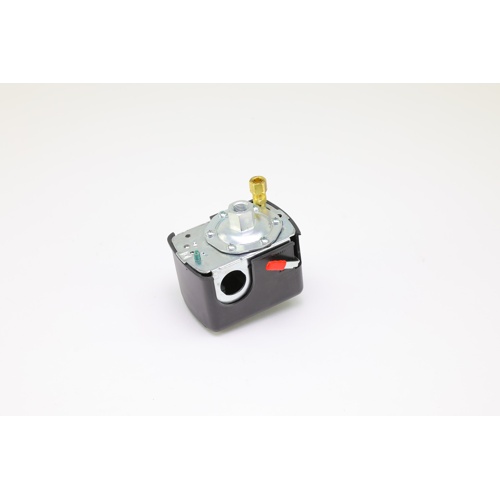

Schneider Electric Square D 9013FHG2J27M1XZ22 40/100 PSI 2-Pole Pressure Switch

Description

Schneider Electric (Square D) 9013FHG2J27M1XZ22 Pressure Switch Overview

The Schneider Electric (Square D) 9013FHG2J27M1XZ22 is a heavy-duty, 2-pole electromechanical pressure switch engineered for dependable pressure sensing and control in commercial and industrial HVAC, compressor, and fluid system applications. With a pressure range of 40 to 100 PSI and factory-set switching points of 80 PSI (cut-in/On) and 100 PSI (cut-out/Off), this switch delivers precise, repeatable performance to protect equipment and maintain optimal system pressure levels.

Key Features

• Pressure range: 40–100 PSI
• 2-pole (2P) switching configuration for versatile circuit control
• Cut-in (On) set point: 80 PSI
• Cut-out (Off) set point: 100 PSI
• Part of Square D’s trusted 9013FHG series of pressure switches
• Designed for compressor, pump, and HVAC pressure control applications
• Rugged construction for long service life in demanding environments

Application

The 9013FHG2J27M1XZ22 is ideal for use in air compressor systems, hydronic and steam systems, water pump controls, and other industrial or commercial pressure-sensing applications where reliable automatic switching is required. The 2-pole design allows for simultaneous control of two circuit legs, making it suitable for higher-voltage or multi-wire system configurations.

Why Choose Square D Pressure Switches

Schneider Electric’s Square D brand is a globally recognized leader in electrical distribution and control products. The 9013FHG series pressure switches are known for their robust build quality, consistent set-point accuracy, and ease of installation — making them a go-to choice for HVAC technicians and industrial maintenance professionals alike.
