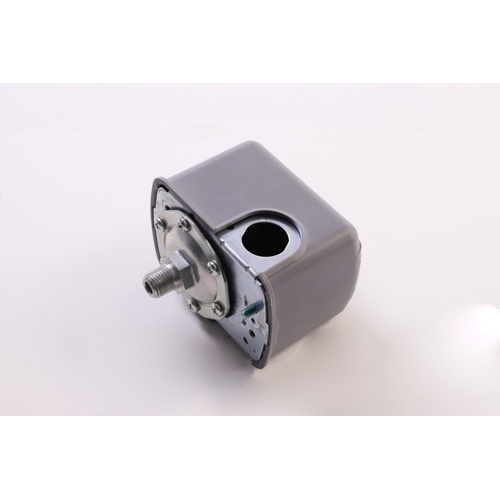

The Schneider Electric (Square D) 9013FHG49J59 is a heavy-duty DPST (Double Pole, Single Throw) pressure switch engineered for dependable automatic pressure control in HVAC, compressor, and fluid system applications. With a wide operating pressure range of 60 to 200 PSI, a cut-in (On) set point of 135 PSI, and a cut-out (Off) set point of 175 PSI, this switch delivers precise, repeatable switching performance to protect equipment and maintain system efficiency.
Built under the trusted Square D brand — a Schneider Electric product line — the 9013FHG49J59 is designed for commercial and industrial environments where reliable pressure management is critical. The DPST contact configuration allows simultaneous switching of two circuits, making it ideal for motor control, pump protection, and compressor staging applications.
Key Features
- DPST (Double Pole, Single Throw) contact configuration for dual-circuit switching
- Operating pressure range: 60–200 PSI
- Cut-in (On) set point: 135 PSI
- Cut-out (Off) set point: 175 PSI
- Designed for compressor, pump, and HVAC pressure control applications
- Trusted Square D / Schneider Electric quality and reliability
- Suitable for commercial and industrial system integration
Specifications
- SKU: 9013FHG49J59
- Brand: Schneider Electric (Square D)
- Switch Type: DPST (Double Pole, Single Throw)
- Pressure Range: 60–200 PSI
- Cut-In Pressure (On): 135 PSI
- Cut-Out Pressure (Off): 175 PSI
Applications
- Air compressor pressure control
- Pump and booster system protection
- HVAC refrigerant and fluid circuit monitoring
- Commercial and industrial motor control panels
