Description

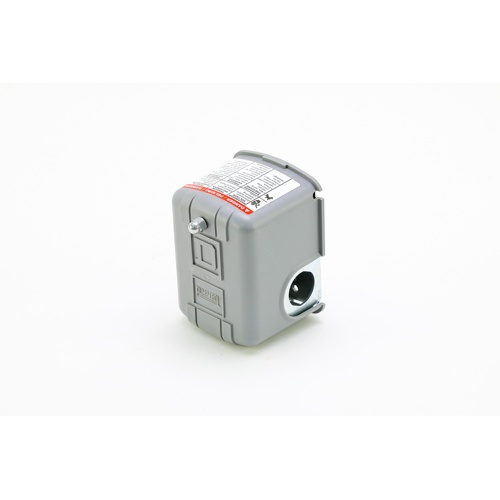

The Schneider Electric (Square D) 9013FRG22J19 is a heavy-duty pressure switch engineered for dependable pressure sensing and control in HVAC, pumping, and industrial applications. Part of Square D’s trusted 9013FRG series, this switch features a 22–16 PSI pressure range with a rising-action (RA) configuration, meaning the contacts close on rising pressure. The double-pole single-throw dead band (DPST-DB) contact arrangement provides two normally open (2NO) contacts for versatile circuit control, while the dead band design helps prevent rapid cycling and extends equipment life.
Key Features
- Pressure range: 22–16 PSI (cut-out/cut-in)
- Rising action (RA): contacts close on rising pressure
- 2NO (Two Normally Open) contact configuration
- DPST-DB (Double Pole Single Throw, Dead Band) switch type
- Dead band operation minimizes short-cycling and protects connected equipment
- Part of the Square D 9013FRG series — a proven platform for pressure control
- Designed for use in HVAC systems, water pumping, compressor control, and related applications
Why Choose Square D Pressure Switches?
Square D by Schneider Electric has been a benchmark brand in electrical and pressure control for decades. The 9013FRG series pressure switches are widely specified by HVAC and mechanical contractors for their rugged construction, consistent setpoint accuracy, and long service life. The 9013FRG22J19 is ideal for applications requiring a reliable two-circuit switching solution with a built-in dead band to protect pumps, compressors, and other pressure-sensitive equipment from unnecessary wear.
Typical Applications
- Hydronic heating and cooling systems
- Water pressure booster pump control
- Air compressor pressure management
- HVAC equipment protection and sequencing
- Industrial process pressure monitoring
