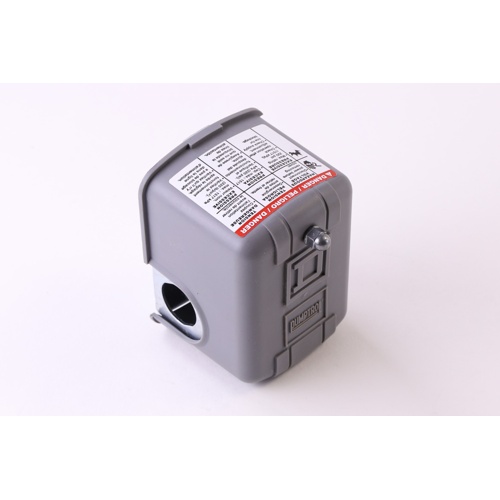

Schneider Electric (Square D) 9013FRG62J23 Pressure Switch 40# On / 20# Off Reverse Acting

Description

The Schneider Electric (Square D) 9013FRG62J23 is a heavy-duty reverse acting pressure switch engineered for dependable pressure monitoring and control in HVAC, refrigeration, and industrial fluid systems. With a cut-in (On) setpoint of 40 PSI and a cut-out (Off) setpoint of 20 PSI, this switch automatically opens its contacts when system pressure rises to the set point and closes them when pressure drops — the hallmark of reverse acting operation ideal for pump protection, compressor control, and system safety circuits.

Built under the trusted Square D brand by Schneider Electric, the 9013FRG62J23 delivers the rugged construction and consistent performance that HVAC and mechanical contractors rely on in demanding field conditions.

Key Features

• Reverse acting (normally closed) operation — contacts open on pressure rise
• Cut-In (On) setpoint: 40 PSI
• Cut-Out (Off) setpoint: 20 PSI
• Designed for use in HVAC, refrigeration, and industrial pressure control applications
• Engineered and backed by Schneider Electric (Square D) — a globally recognized controls brand
• Suitable for pump, compressor, and fluid system protection circuits

Application

The 9013FRG62J23 is well-suited for applications where a pressure drop below a threshold must trigger a circuit response — such as low-pressure safety cutouts, pump protection, and pressure-controlled sequencing in hydronic and refrigeration systems.

Specifications

• SKU: 9013FRG62J23
• Brand: Schneider Electric (Square D)
• Type: Pressure Switch — Reverse Acting
• Cut-In (On) Pressure: 40 PSI
• Cut-Out (Off) Pressure: 20 PSI
• Action: Reverse Acting (contacts open on pressure rise)
