Description

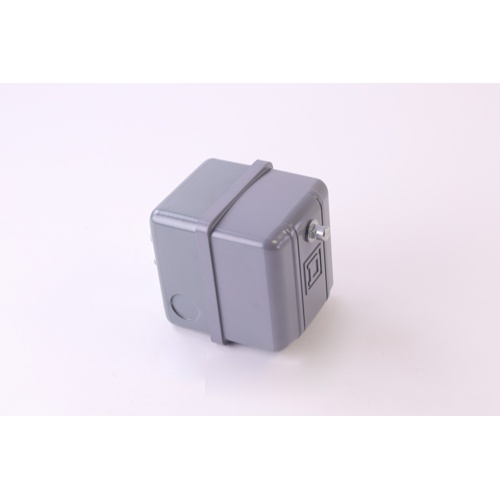

The Schneider Electric (Square D) 9013GHG2J25 is a heavy-duty DPDT (Double Pole Double Throw) pressure switch engineered for dependable pressure sensing and switching in a wide range of HVAC, compressor, pump, and fluid-handling applications. Part of Square D’s trusted 9013GH series, this switch delivers precise, repeatable performance across demanding commercial and industrial environments.
Key Features
- Double Pole Double Throw (DPDT) switching configuration for versatile circuit control
- Wide adjustable pressure range: 40 to 200 PSI
- Factory-set cut-in / cut-out: 60 PSI On / 80 PSI Off
- 10 Amp rated switching capacity
- Designed for use with air, water, oil, and non-corrosive fluids
- Rugged construction suitable for commercial and light industrial duty
- Part of the Square D 9013GH series — a proven platform for pressure control
Application
The 9013GHG2J25 is ideal for controlling compressors, pumps, and HVAC equipment where automatic start/stop based on system pressure is required. The DPDT contact arrangement allows the switch to simultaneously control two separate circuits, making it well-suited for alarm, pilot, or dual-load applications.
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 9013GHG2J25
- Switch Type: DPDT (Double Pole Double Throw)
- Pressure Range: 40–200 PSI (adjustable)
- Factory Set Point: Cut-In 60 PSI / Cut-Out 80 PSI
- Current Rating: 10A
- Series: 9013GH
