Description

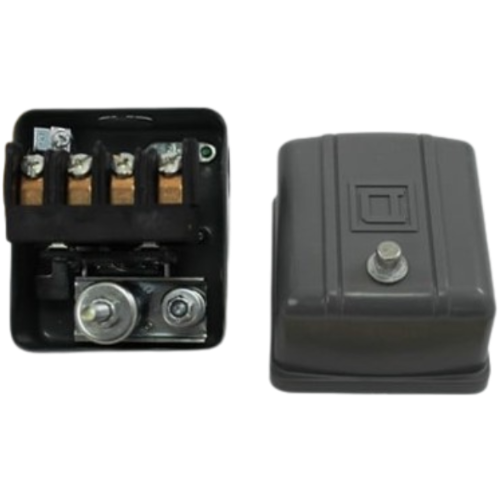

The Schneider Electric (Square D) 9013GHG2J53 is a heavy-duty Double Pole Double Throw (DPDT) pressure switch engineered for dependable pressure sensing and control in HVAC, refrigeration, compressor, and industrial fluid system applications. With a wide operating pressure range of 40 to 200 PSI, this switch delivers precise, repeatable performance across a broad spectrum of system demands.
Key Features
- Double Pole Double Throw (DPDT) switching action for versatile circuit control
- Operating pressure range: 40–200 PSI
- Factory set cut-in (On) pressure: 100 PSI
- Factory set cut-out (Off) pressure: 125 PSI
- Rugged construction from Schneider Electric’s trusted Square D line
- Designed for use in compressor, pump, and HVAC pressure control circuits
- Reliable electromechanical switching for long service life
Application
The 9013GHG2J53 is ideal for controlling air compressors, water pumps, booster systems, and HVAC equipment where precise pressure cut-in and cut-out points are critical. The DPDT configuration allows the switch to simultaneously open one circuit and close another, enabling flexible control logic in complex systems.
Product Specifications
- SKU / Part Number: 9013GHG2J53
- Brand: Schneider Electric (Square D)
- Switch Type: DPDT (Double Pole Double Throw)
- Pressure Range: 40–200 PSI
- Cut-In (On) Set Point: 100 PSI
- Cut-Out (Off) Set Point: 125 PSI
