Description

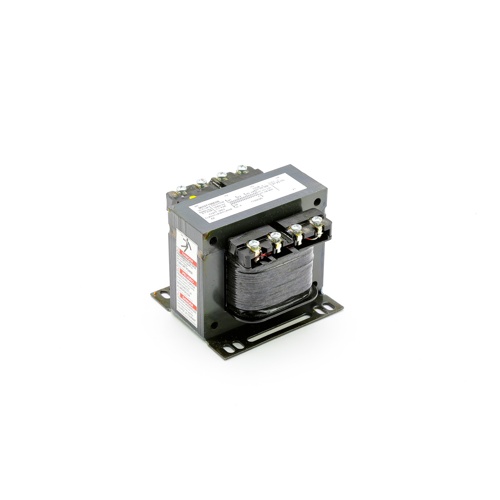

The Schneider Electric (Square D) 9070T100D20 is a heavy-duty machine tool and control circuit transformer engineered for dependable voltage transformation in demanding industrial and commercial HVAC applications. Rated at 100VA, this unit steps down from multiple primary voltage taps to deliver stable, consistent secondary voltage for control circuits, motor starters, contactors, and other low-voltage loads.
Key Features
- 100VA transformer capacity — ideal for control circuit and machine tool applications
- Multi-tap primary voltage: 208V / 230V / 460V for flexible installation across common electrical systems
- Part of Square D’s trusted 9070T Series, designed for long-term reliability in industrial environments
- Compact, panel-mount-ready design for easy integration into electrical enclosures and control panels
- Provides stable secondary voltage output to protect sensitive control components
- Suitable for use with motor starters, contactors, relays, and HVAC control circuits
- Manufactured by Schneider Electric under the Square D brand — a globally recognized leader in electrical distribution and control
Typical Applications
- Commercial and industrial HVAC control panels
- Machine tool control circuits
- Motor starter and contactor control voltage supply
- Electrical enclosures requiring stepped-down control power
Product Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 9070T100D20
- VA Rating: 100VA
- Primary Voltage: 208V / 230V / 460V (multi-tap)
- Series: 9070T
Order the Schneider Electric Square D 9070T100D20 from Jackson Systems for fast shipping and expert support on all your HVAC and industrial electrical needs.
