Description

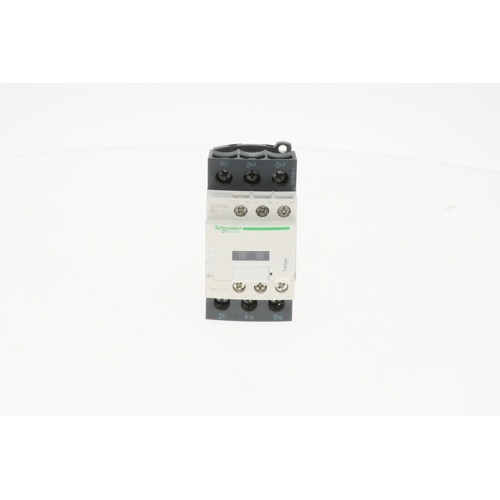

The Schneider Electric (Square D) LC1D32BD is a heavy-duty, industrial-grade non-reversing contactor engineered for reliable motor control and load switching in commercial and industrial HVAC applications. Backed by Schneider Electric’s TeSys D series reputation for durability and performance, this contactor delivers dependable operation in demanding electrical environments.
Key Features
- 3-pole configuration for three-phase load control
- 32-amp continuous current rating
- 24Vdc control coil voltage for low-voltage control circuit compatibility
- Non-reversing design — ideal for single-direction motor and load applications
- Screw terminal connections for secure, vibration-resistant wiring
- One Normally Open (NO) auxiliary contact included
- One Normally Closed (NC) auxiliary contact included
Electrical Specifications
- Coil Voltage: 24Vdc
- Poles: 3
- Current Rating: 32 Amps
- Auxiliary Contacts: 1 NO + 1 NC
- Terminal Type: Screw Terminals
- Operation Type: Non-Reversing
Applications
- HVAC compressor and motor control panels
- Commercial rooftop unit (RTU) electrical systems
- Air handling unit (AHU) motor starters
- Industrial motor control centers (MCCs)
- Pump and fan motor switching
- Building automation and control panel integration
Why Choose the LC1D32BD?
As part of Schneider Electric’s globally recognized TeSys D contactor family, the LC1D32BD is built to IEC standards and designed for long service life with minimal maintenance. The integrated auxiliary contacts (1 NO and 1 NC) provide built-in feedback and interlock capability without the need for add-on blocks, simplifying panel design and reducing installation time. The 24Vdc coil makes it compatible with a wide range of PLC and low-voltage control systems commonly found in modern HVAC and building automation environments.
