Description

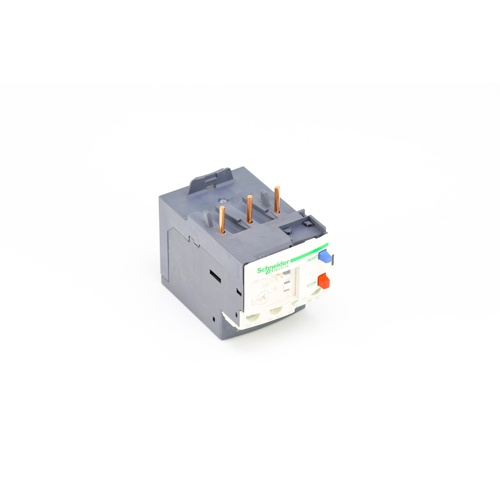

The Schneider Electric (Square D) LRD16L is a Class 20 thermal overload relay engineered to deliver dependable motor protection across a wide range of commercial and industrial HVAC applications. Designed for use with TeSys D-series contactors, this relay provides precise overload and phase-loss protection, helping extend motor life and reduce costly downtime.
Product Overview
The LRD16L features a 9–13A full-load ampere (FLA) adjustment range and a Class 20 trip characteristic, making it well-suited for motors that require a longer trip time to accommodate high-inertia loads during startup. Its compact design integrates directly onto compatible Square D TeSys D contactors for a clean, space-saving installation.
Key Features
- Current adjustment range: 9–13A FLA
- Class 20 trip characteristic for high-inertia motor loads
- Compatible with Square D TeSys D-series contactors
- Provides overload and phase-loss protection
- Manual and automatic reset capability
- Built-in trip indicator for fast fault identification
- Compact, direct-mount design for space-efficient panel layouts
- Schneider Electric / Square D quality and reliability
Typical Applications
- Commercial HVAC motor starters and control panels
- Compressor and fan motor protection
- Pump motor protection in hydronic systems
- Industrial motor control centers (MCCs)
Specifications
- SKU / Part Number: LRD16L
- Brand: Schneider Electric (Square D)
- FLA Range: 9–13A
- Trip Class: Class 20
- Series: TeSys D
- Reset Type: Manual / Automatic
