Description

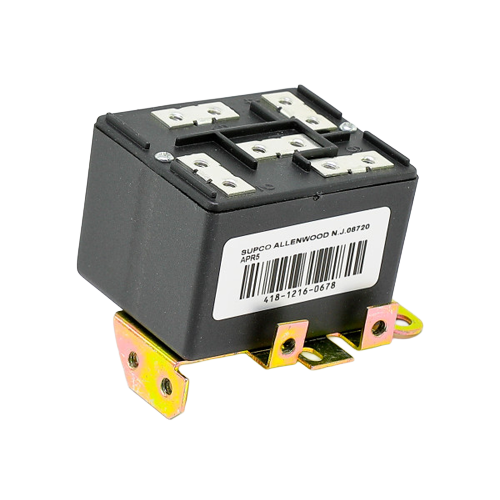

The Supco APR5 is a single-phase potential (POT) relay engineered for dependable compressor motor starting in residential and light commercial HVAC and refrigeration applications. Potential relays play a critical role in the motor starting circuit — monitoring the back-EMF generated across the start winding and opening the start capacitor circuit once the motor accelerates to approximately 75% of its rated speed. This protects the start capacitor and start winding from heat damage during normal operation.
Key Specifications
- Model: APR5
- Brand: Supco
- Current Rating: 30A
- Voltage Range: 110–270VAC
- Phase: Single-Phase (1PH)
- Relay Type: Potential (POT) Relay
Features & Benefits
- Wide voltage range (110–270VAC) provides versatile compatibility across a broad range of single-phase compressor motors
- 30A current rating handles demanding motor starting loads with confidence
- Potential relay design automatically disconnects the start capacitor once the motor reaches running speed, extending component life
- Compact, reliable construction suited for residential and light commercial HVAC and refrigeration systems
- Engineered by Supco, a trusted name in HVAC/R electrical components and compressor accessories
Typical Applications
- Single-phase hermetic and semi-hermetic compressor motor starting circuits
- Residential central air conditioning and heat pump systems
- Light commercial refrigeration equipment
- Replacement of failed or worn potential relays in existing HVAC/R systems
Why Choose the Supco APR5?
Supco has built a strong reputation in the HVAC and refrigeration industry for producing reliable, high-quality electrical components. The APR5 potential relay delivers consistent performance across its wide operating voltage range, making it a practical choice for technicians seeking a dependable replacement or upgrade for single-phase compressor starting circuits.
