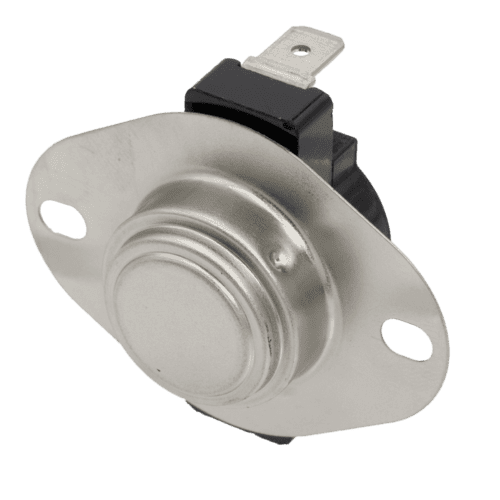

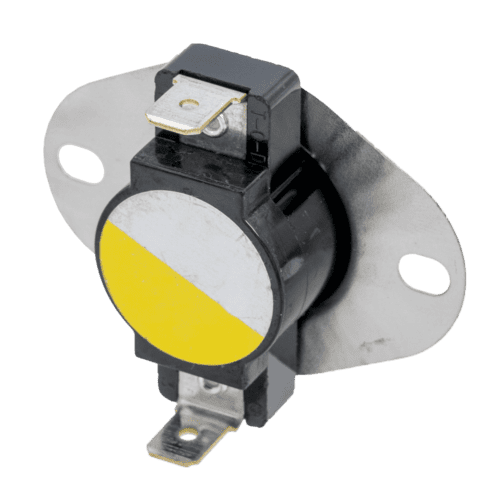

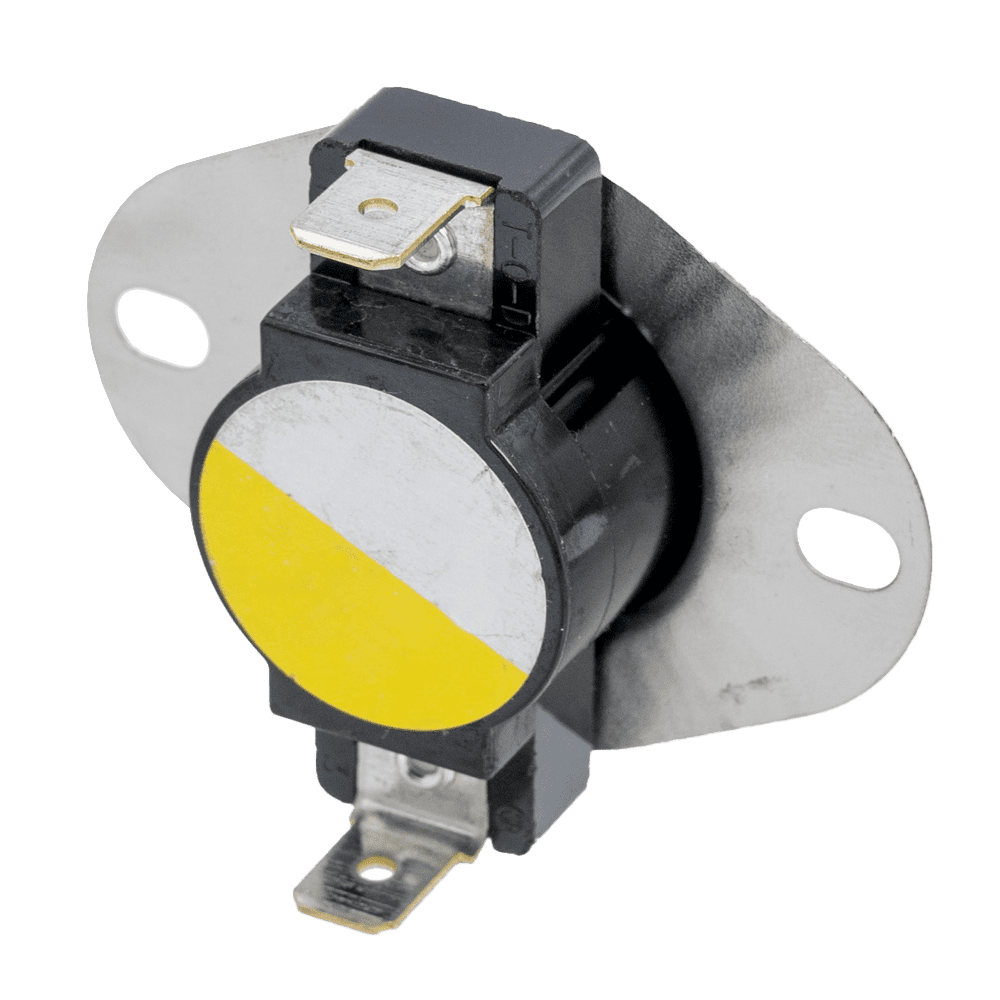

Supco L160-20F 160F Open Snap-Action Temperature Control

BRAND: Supco SKU: L160

$5.14

MSRP: $5.91
You save 15%

L160-20F Snap-Action Temperature Control

Availability:

Ships By June 9

Description

The Supco L160 is a 3/4" (19mm) bi-metal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

Features
  • Close when temperature differential is reached
  • Open on rise
  • 1/4" quick disconnect terminals
  • Welded construction for integrity of current-carrying components
  • 60T electrical ratings – see Downloads for application sheet
Applications
  • Single pole – single throw
  • Most home laundry dryers
  • Fan and limit applications
Specifications
  • °Differential: 20°
  • Open: 160°F
  • Close: 140°F
  • FLA @ 120VAC: 10A
  • FLA @ 240VAC: 5A
  • LRA @ 120VAC: 60A
  • LRA @ 240VAC: 30A
  • Pilot Duty @ 120VAC / 240VAC: 125 VA
  • RLA @ 120VAC / 240VAC: 25A
  • Agency: UL®, CSA®

Additional information

Differential Temperature

Open Temperature

160°F

Close Temperature

140°F

UPC 687152020539
