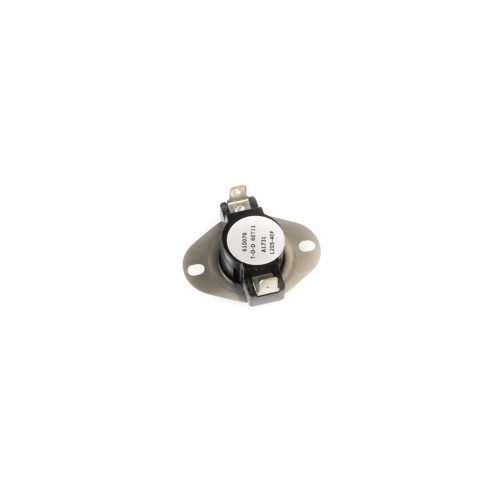

Supco L205 Snap Disc Auto Reset Temperature Limit Switch
The Supco L205 is a precision-engineered snap disc temperature limit switch designed to protect HVAC and appliance systems from dangerous overheating conditions. With a fixed cut-in temperature of 165°F and a fixed cut-out temperature of 205°F, this auto-reset control provides dependable, repeatable thermal protection without the need for manual intervention after a trip event.
How It Works
The L205 utilizes a snap disc mechanism that opens the circuit on a rise in temperature — activating at 205°F to interrupt the circuit and protect downstream components. Once temperatures drop back to the 165°F cut-in threshold, the disc automatically resets and restores normal operation. This open-on-rise, auto-reset action makes it ideal for applications where continuous monitoring and automatic recovery are essential.
Key Features
- Fixed cut-in temperature: 165°F
- Fixed cut-out temperature: 205°F
- Switch action: Open on Rise (opens circuit when temperature exceeds cut-out)
- Reset type: Automatic (auto reset — no manual reset required)
- Disc type: Snap disc for fast, positive switching action
- Manufacturer cross-reference: 60T11-610078
Applications
- Furnace and air handler overheat protection
- Appliance thermal limit control
- HVAC equipment safety circuits
- OEM replacement in residential and light commercial systems
Why Choose the Supco L205?
Supco is a trusted name in HVAC and appliance controls, known for manufacturing reliable, high-quality replacement components. The L205 snap disc limit switch delivers consistent performance, fast response to temperature changes, and long service life — making it an excellent choice for both OEM replacement and aftermarket installations.
