Description

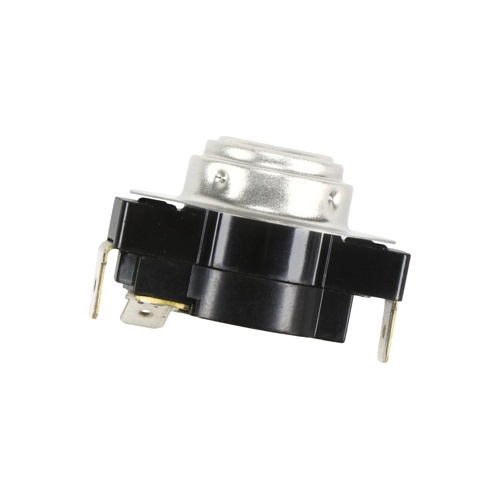

The Supco LD120 is a precision-engineered snap disc temperature limit switch designed for dependable over-temperature protection in a wide range of HVAC and appliance applications. With a fixed 105°F cut-in temperature and a fixed 120°F cut-out temperature, this auto-reset device responds quickly and consistently to temperature changes, helping safeguard equipment without requiring manual intervention after a trip event.
The SPDT (Single-Pole, Double-Throw) switching configuration provides versatile circuit control, making it suitable for both normally open and normally closed wiring arrangements. The snap disc mechanism delivers fast, positive switching action that minimizes contact arcing and ensures long service life even under repeated thermal cycling.
Key Features
- Fixed 105°F cut-in temperature for reliable circuit re-engagement
- Fixed 120°F cut-out temperature for consistent over-temperature protection
- SPDT (Single-Pole, Double-Throw) switching action for flexible wiring options
- Snap disc design provides fast, positive switching response
- Auto reset operation — automatically restores circuit when temperature drops to cut-in point
- Cross-reference: 60T13-611000
Applications
- HVAC systems requiring low-range temperature limiting
- Appliance over-temperature protection circuits
- Refrigeration and cooling equipment controls
- OEM replacement for 60T13-611000 snap disc limit switches
Why Choose the Supco LD120?
Supco has built a strong reputation in the HVAC and refrigeration industry for producing high-quality replacement controls and components. The LD120 continues that tradition by delivering accurate, repeatable temperature switching in a compact, easy-to-install package. Its auto-reset functionality reduces service calls and downtime, while the snap disc mechanism ensures consistent performance over the life of the equipment.
