Description

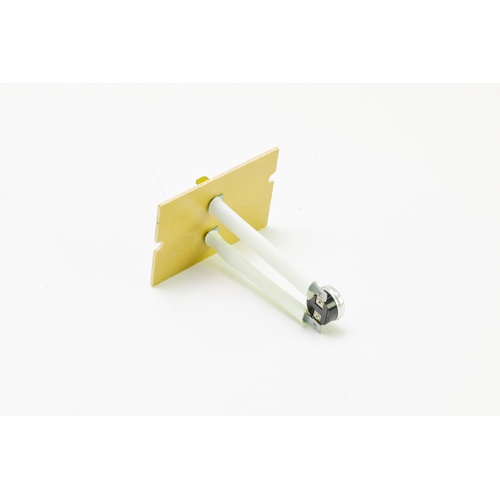

The Supco SHL502 is a board-mounted, general-purpose temperature limit switch engineered for reliable overheat protection in a wide range of HVAC and appliance control applications. Featuring fixed open and close temperature setpoints with automatic reset functionality, this switch provides consistent, hands-free protection without the need for manual intervention after a fault condition clears.
How It Works
The SHL502 monitors supply-air or equipment temperatures via its 3.12″ insertion probe. When the sensed temperature reaches the fixed open setpoint of 180°F, the SPST normally closed (NC) circuit opens, interrupting the control circuit and shutting down the associated equipment. Once temperatures fall back to the fixed close setpoint of 150°F, the switch automatically resets and restores normal operation — no manual reset required.
Key Specifications
- Fixed Open Temperature: 180°F
- Fixed Close Temperature: 150°F
- Switch Type: SPST (Single Pole, Single Throw) Normally Closed
- Reset Type: Automatic (Auto Reset)
- Insertion Length: 3.12″
- Mounting Style: Board Mounted
- Application: General Purpose Limit Switch
Features & Benefits
- Fixed temperature setpoints eliminate the need for field calibration
- Auto-reset design reduces service calls and manual reset labor
- SPST NC configuration integrates seamlessly into standard HVAC control circuits
- Board-mount design simplifies installation directly onto control boards or mounting panels
- 3.12″ insertion length provides accurate temperature sensing in duct or equipment cavities
- Compact, durable construction built for long-term reliability in demanding HVAC environments
Typical Applications
- Furnace and air handler overheat protection
- Appliance temperature control circuits
- General HVAC equipment limit control
- OEM control board replacement and service applications
