Description

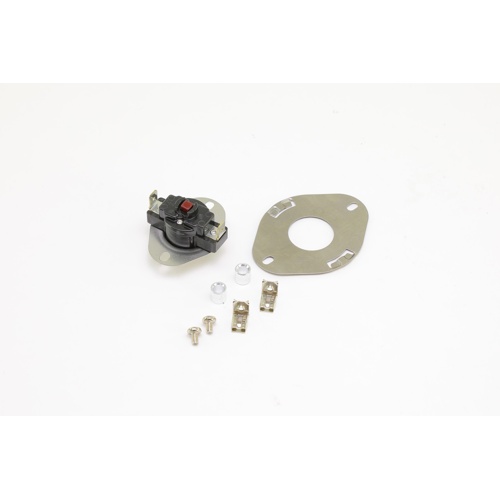

The Supco SHM160 is a snap disc manual reset limit switch engineered for reliable over-temperature protection in HVAC and heating equipment. With a fixed 160°F cut-out temperature and open-on-rise switch action, this device interrupts the circuit when the monitored surface or air stream reaches the set point, preventing equipment damage and potential safety hazards. Manual reset operation ensures that a technician must physically inspect and reset the device before the system can resume operation — a critical safety feature in high-stakes heating applications.
The SHM160 ships complete with an adapter flange plate, simplifying installation on a wide range of furnaces, air handlers, duct systems, and other HVAC equipment where secure, flush mounting is required.
Key Features
- Fixed 160°F cut-out temperature for consistent, repeatable protection
- Open-on-rise switch action — circuit opens when temperature reaches set point
- Manual reset operation — requires technician intervention before restart
- Snap disc mechanism for fast, positive switching response
- Includes adapter flange plate for versatile mounting options
- Suitable for use in furnaces, air handlers, duct systems, and heating equipment
Specifications
- Brand: Supco
- SKU: SHM160
- Cut-Out Temperature: 160°F (Fixed)
- Switch Action: Open on Rise
- Reset Type: Manual Reset
- Switch Type: Snap Disc Limit Switch
- Includes: Adapter Flange Plate
Applications
- Residential and light commercial furnaces
- Air handlers and fan coil units
- Duct-mounted over-temperature protection
- Heating equipment requiring manual-reset safety controls
