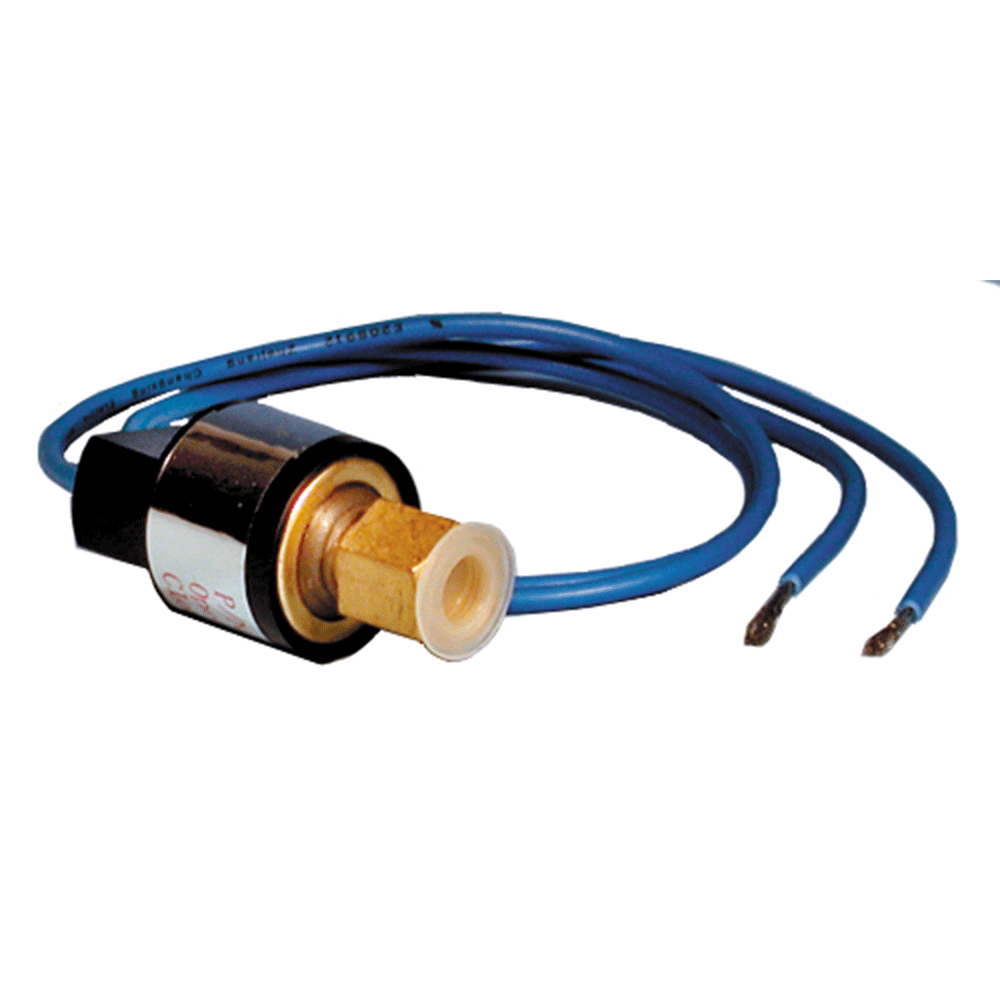

Supco SLP4080 Low Pressure Switch | 40 PSI Open, 80 PSI Close

BRAND: Supco SKU: SLP4080

$12.99

MSRP: $14.94
You save 15%

Pressure Switch, Open PSI: 40, Close PSI: 80

Availability:

On Backorder

Description

The Supco SLP4080 is a 40 Open PSI, 80 PSI Close pressure switch provides high precision controls at economical prices. Encapsulated, non-adjustable, single pole – single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants.

Features
  • Low pressure switch opens on pressure fall
  • Rated Voltage 24/120/240 VAC @ 50/60 Hz
  • Life at rated load: 100,000 cycles
  • ¼" SAE 45° female flare fitting with valve core depressor
  • Snap acting stainless steel hermetically sealed sensor
  • Small size and light weight for direct mounting
  • Excellent set point repeatability/stability
  • Wire is 18 AWG, 18" long
Applications
  • Heat pump systems
  • Air conditioning systems
  • Refrigeration Systems
Specifications
  • Tolerance: +/- 5 PSI
  • Open PSI: 40 PSI
  • Close PSI: 80 PSI
  • Burst Pressure: 2800 PSI
  • Maximum Operating Pressure: 700 PSI
  • Maximum Temperature: -31°F to 149°F (-35°C to 65°C)
  • Maximum LRA: 17.4 Amps @ 240VAC
  • Maximum LRA: 34.8 Amps @ 120VAC
  • Maximum FLA: 2.9 Amps @ 240VAC
  • Maximum FLA: 5.8 Amps @ 120VAC

Additional information

Tolerance

Open PSI

Close PSI

Temperature

UPC 687152146116

Reviews

There are no reviews yet.

Be the first to review “Supco SLP4080 Low Pressure Switch | 40 PSI Open, 80 PSI Close”

Compatible Products

Mars
33364
43350
Ranco
MPL7014
Robertshaw
3100052
3101005
