Description

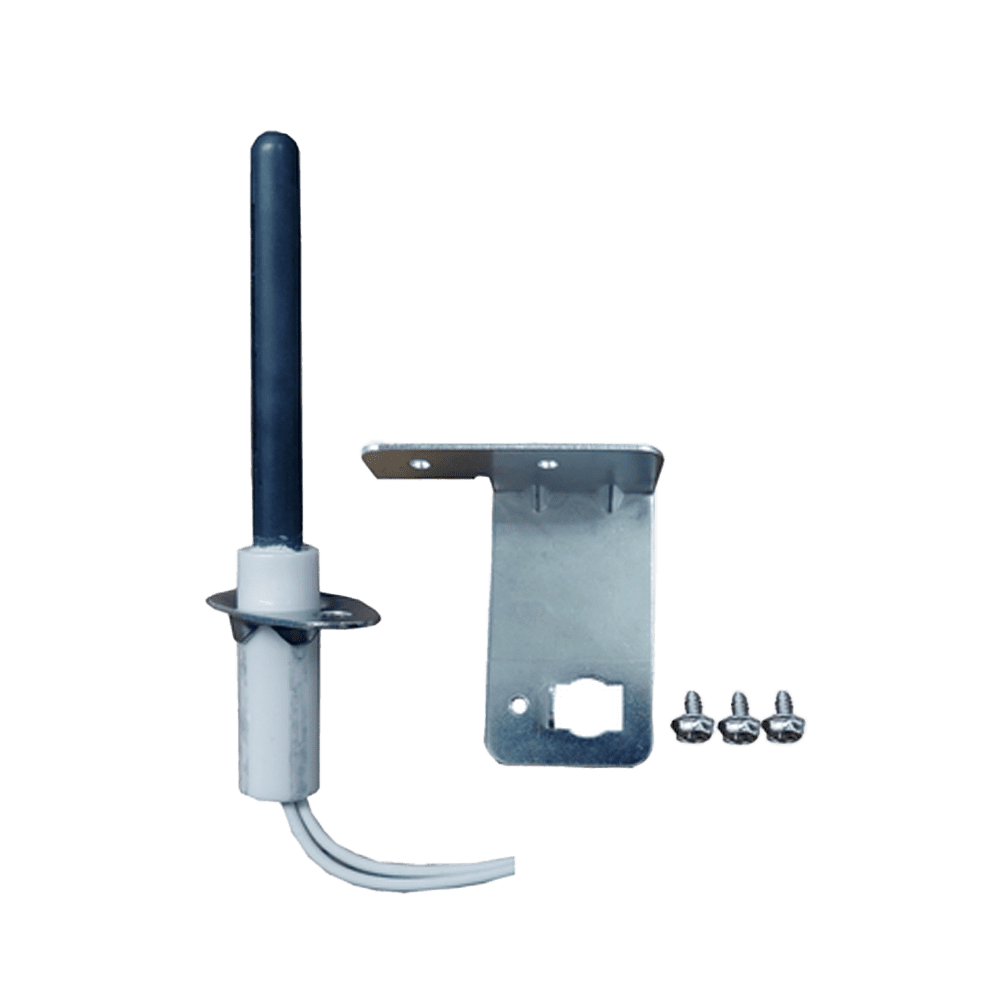

The ultimate upgrade made from Silicon Nitride, robust and durable. This 80 volt direct drop in upgrade replaces Trane – IGN00145.
Features:
- Drop-in Replacement
- Easy fit
- Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
- Resistance: 34 – 64 Ohms
- Minimum Temperature: 2192°F / 1200°C @ 98 Volts
- Maximum Temperature: 2732°F / 1500°C @ 132 Volts
- Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
- Igniter Material: Silicon Nitride
