Description

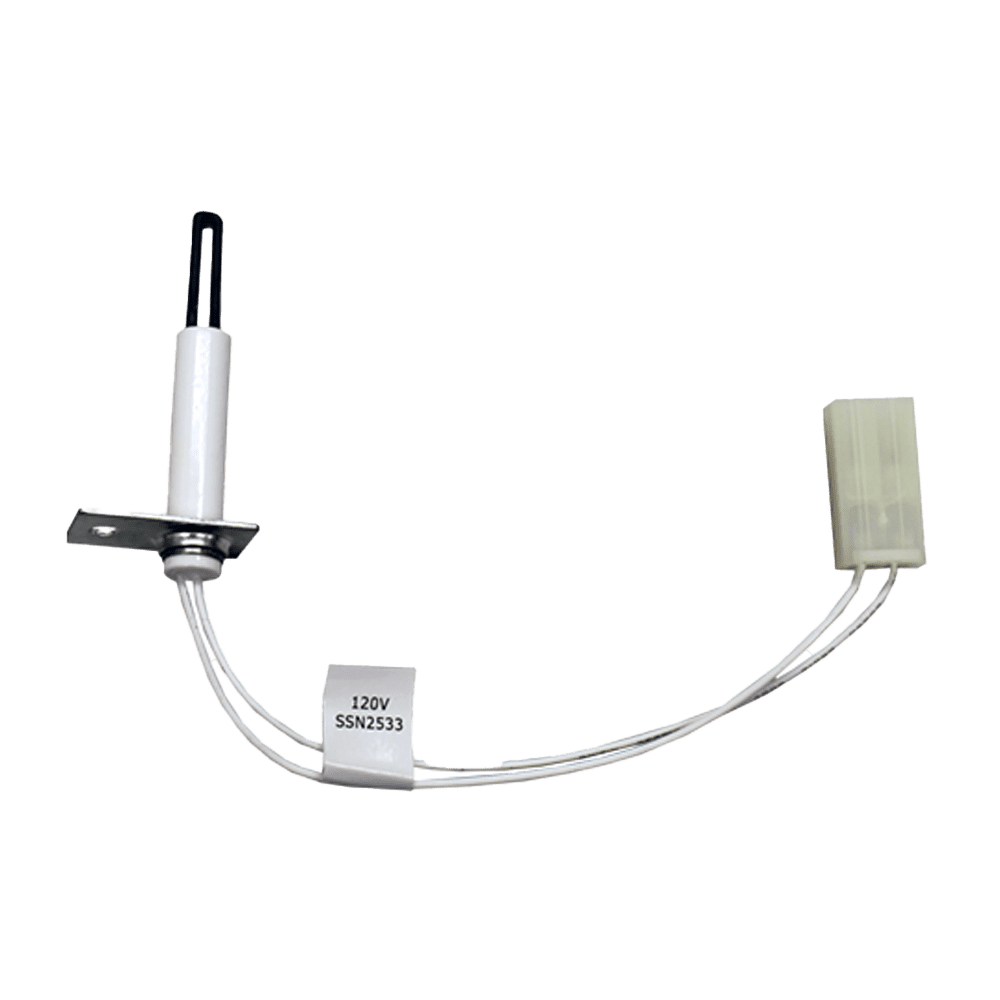

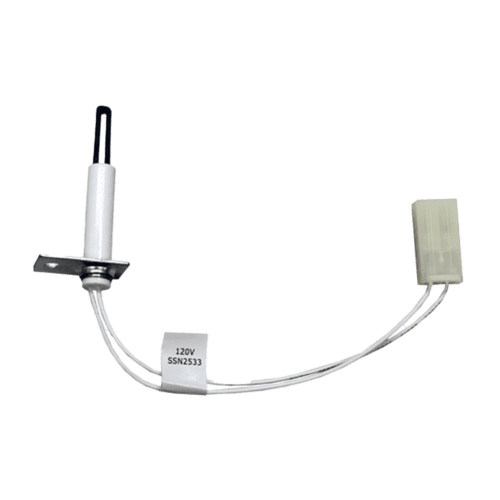

The 1172533 Igniter is used on many ArcoAire®, Comfortmaker®, Heil®, Tempstar®, and Whirlpool® furnaces.
Features:
- Length: 6.25″
- Minimum Temperature: 1800°F / 980°C @ 98 Volts
- Maximum Temperature : 3100°F / 1705°C @ 132 Volts
- Time to Temperature : <17 seconds @ 115 + / ? 1.0 VAC
- Resistance: 50 to 1100 Ohms
- Steady State Current : 2.9 to 5.0 Amps Maximum @ 132 Volts
- Igniter Material: Silicon Nitride
