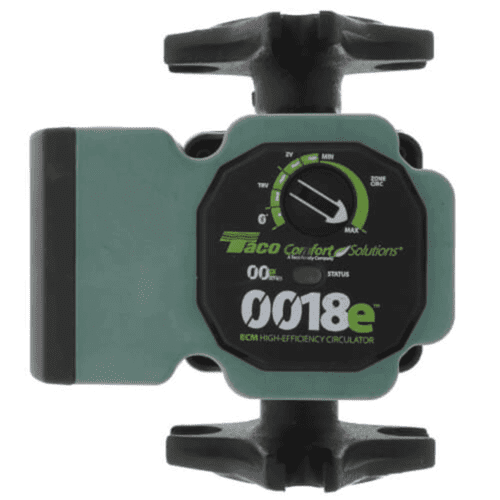

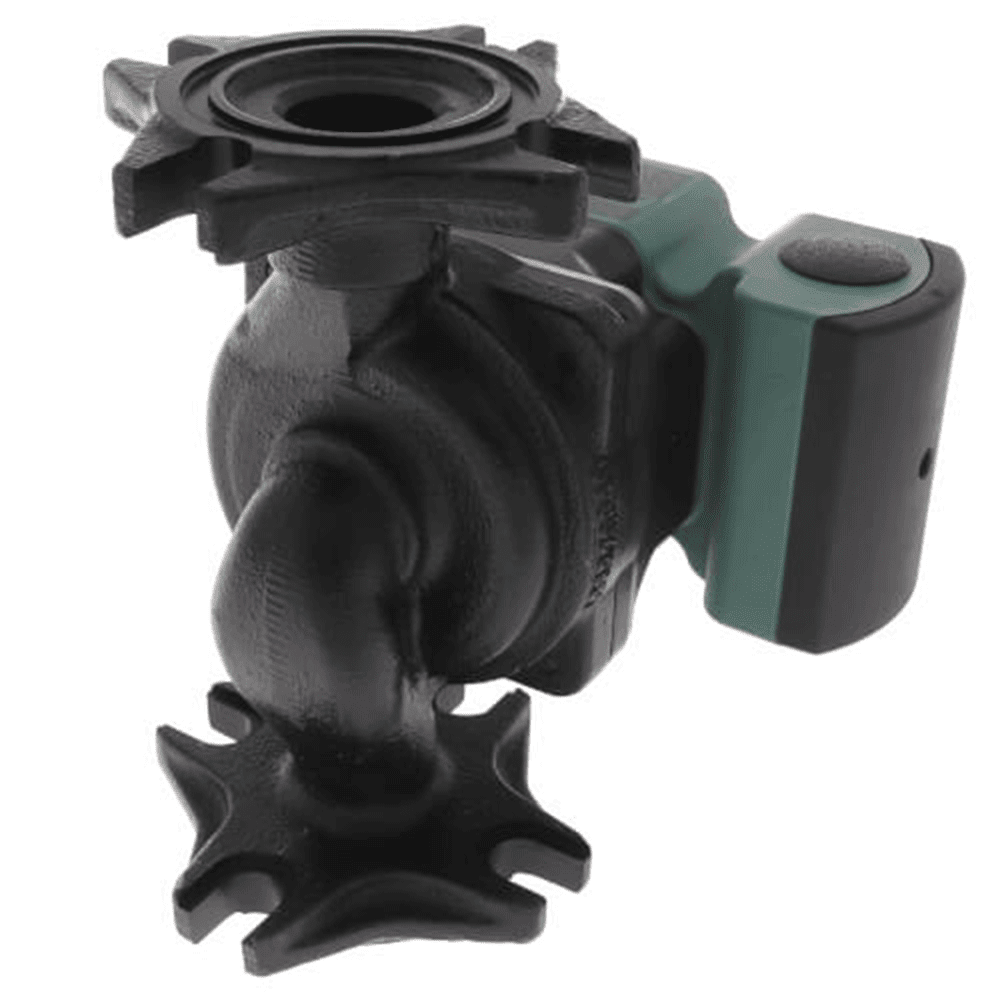

Taco 0018E-2F4 ECM High-Efficiency Circulator Pump with Bluetooth

Description

The Taco 0018E-2F4 Circulator featuring Bluetooth is a versatile, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Download the Taco 0018e Mobile App to see and control real-time system performance. Run system operation & validation reports including performance diagnostics & history. Know the most efficient setting based on real-time feedback and alleviate the problems of over-pumping. You design systems with precision. The 0018e offers the performance & control to match.

The 00e® series 0018e circulator is a variable speed wet rotor circulator with an ECM, permanent magnet motor. Operating modes include infinitely variable fixed speed, constant pressure, proportional pressure, and activeADAPTTM self-adjusting proportional pressure. Adjust the operating mode with the dial or the Taco 0018eTM ECM Circulator Mobile App using Bluetooth® connectivity on your smartphone or tablet. The ECM high-efficiency motor reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

Features:

• 3 operating modes in dial activation:
  • Proportional pressure ( TRV – Panel Radiator ), variable speed – 2 variable pressure differential settings (Med or High)
  • Constant pressure ( ZV – Zone Valve ), variable speed – 2 constant pressure differential settings (Med or High)
  • Fixed speed ( ZONE CIRC – zoning with circulators ) – infinitely adjustable MIN/MAX settings

4 operating modes in 0018eTM Mobile App activation:

• • Fixed Speed – infinitely adjustable MIN/MAX settings
  • Constant Pressure – variable speed – 9 constant pressure differential settings
  • Proportional Pressure – variable speed – 9 variable pressure differential settings
  • activeADAPTTM – Designed for constant circulation systems. Automatically adjusts to system conditions
• Multi-color LED display showing operating mode and error code diagnostics
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Nut capture feature on flanges for easier fit up
• Dual electrical knockouts and 6” stranded wire leads for easy wiring
• Double insulated – no ground-wire required
• Whisper quiet operation
• BIO Barrier® protects the pump from system contaminants
• SureStart ® – automatic unblocking and air purging mode
• Optional 2-way flange model for easy fit-up to any flange orientation

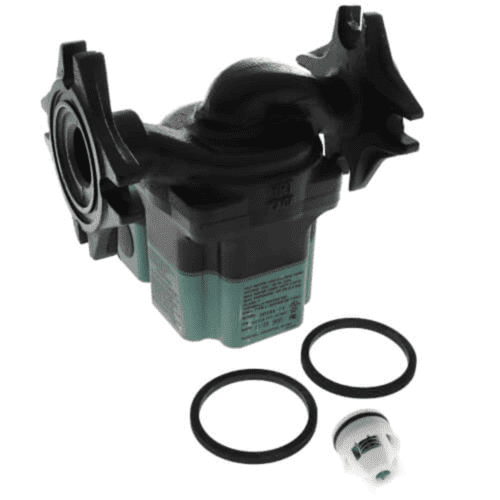

• Integral Flow Check (IFC®) included – Field installed

Specifications

• Type: Variable Speed Pump
• Max Flow: 16 GPM
• Max Head: 18 Ft
• Amperage: 0.54 A
• Material: Cast Iron
• Max Pressure (PSI): 125
• RPM: 4830
• Voltage: 120v
• Width (Inches): 5-1/8"
• Includes: Bluetooth
