Taco 5004-C3-G 1in Sweat Union 5004 Mixing Valve with Gauge, Low Lead

BRAND: Taco Comfort Solutions SKU: 5004-C3-G


MSRP: $201.40
You save 15%

1″ Sweat Union 5004 Mixing Valve with Gauge (Low Lead)


Ships By June 22

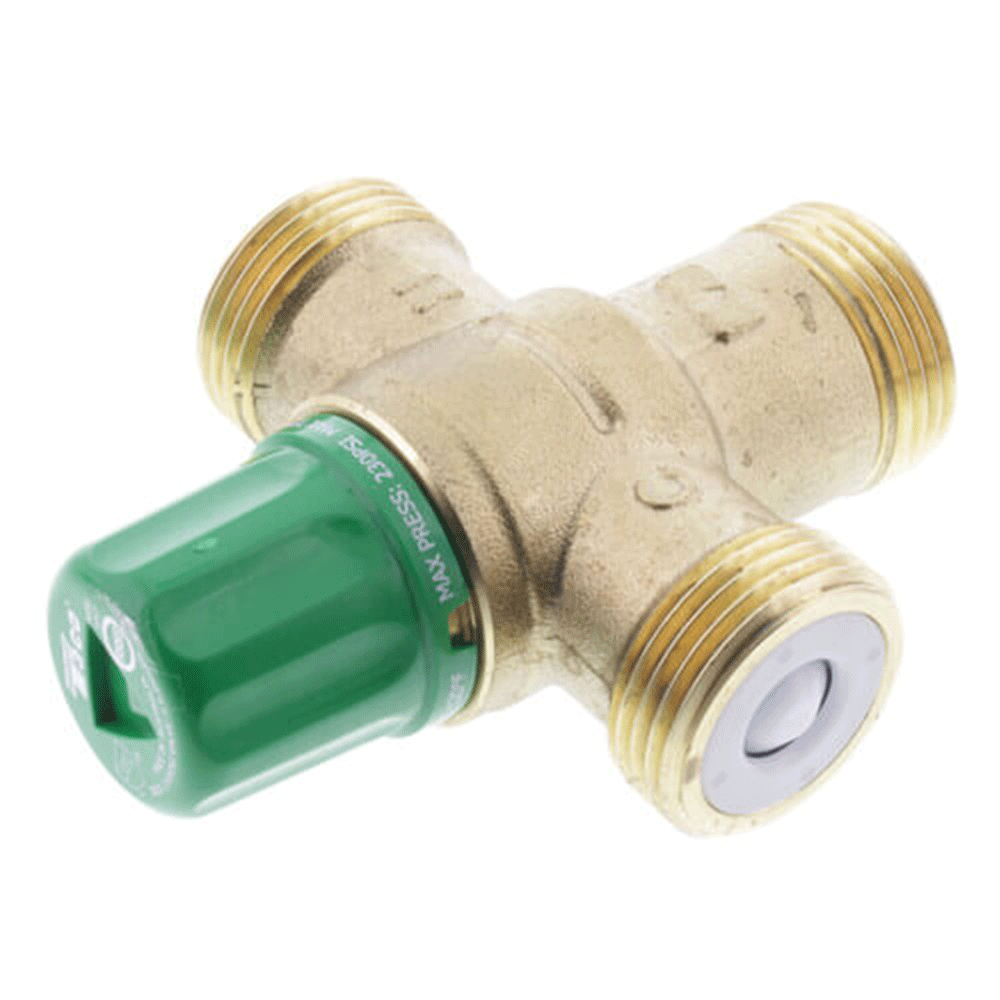

The Taco 5004-C3-G is a 1 inch sweat union low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5004-C3-G is capable of handling temperatures up to 176 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve features a tamper resistant cap to prevent alterations to the mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5004-C3-G.

  • Less than .25% lead
  • ASSE 1017 Listed
  • Ideal for Domestic Water Distribution Points
  • Suitable for use in Potable Water
  • Delivers Stable Mixed Water Temperature
  • Extended Mix Temperature Range of 85-176°F (29-80°C)
  • Tamper-Resistance Cap
  • Union and NPT Options
  • Sweat, NPT, Pex, CPVC Union Connections
  • Low Headloss
  • Outlet Temperature Strip
  • Optional Dial Gauge and Adaptor
  • Low Temperature and Radiant Systems
  • Domestic Hot Water
What's Included

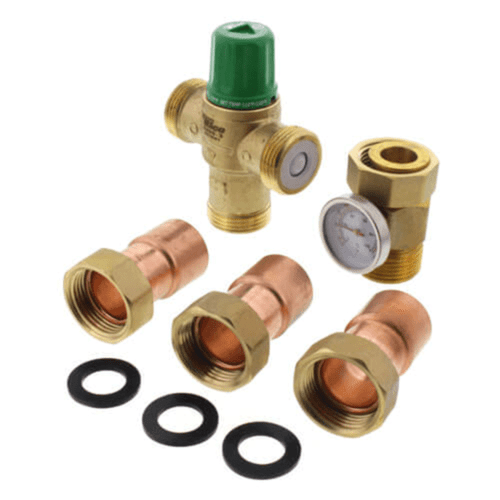

    1 – Taco 5004-C3-G Lead Free Mixing Valve

  • 1 – Temperature Gauge
  • 1 – Outlet Temperature Strip

Additional information

Connection Size

Connection Method

Connection Type

Operating Pressure

Valve Body Pattern


UPC 687752787573
