Description

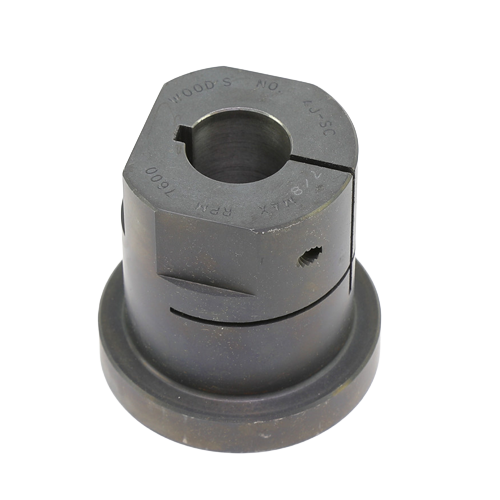

The TB Woods 4JSC35-7/8 is a Size 4 High Strength Cast Iron Type SC Sure-Flex Plus Spacer Flange designed for reliable power transmission in HVAC and industrial drive applications. Engineered with precision, this spacer flange pairs with Sure-Flex Plus flexible couplings to deliver smooth, vibration-dampening torque transfer between shafts.
Product Overview
The Sure-Flex Plus coupling system from TB Woods is a time-proven flexible coupling solution widely used in HVAC equipment, pumps, compressors, fans, and blowers. The Type SC spacer flange design allows for easy sleeve removal and installation without disturbing connected equipment, reducing maintenance downtime on the job.
Key Features
- Size 4 Sure-Flex Plus Type SC Spacer Flange
- High strength cast iron construction for durability and long service life
- 7/8″ finished bore for precise shaft fit
- 3/16″ x 3/32″ keyseat for positive torque transmission
- Spacer design allows sleeve removal without moving connected equipment
- Compatible with Sure-Flex Plus flexible coupling sleeves
- Ideal for HVAC fans, blowers, pumps, and compressor drive applications
Specifications
- SKU: 4JSC35-7/8
- Brand: TB Woods
- Coupling Size: 4
- Flange Type: SC (Spacer)
- Material: High Strength Cast Iron
- Bore Size: 7/8″
- Keyseat: 3/16″ x 3/32″
