Description

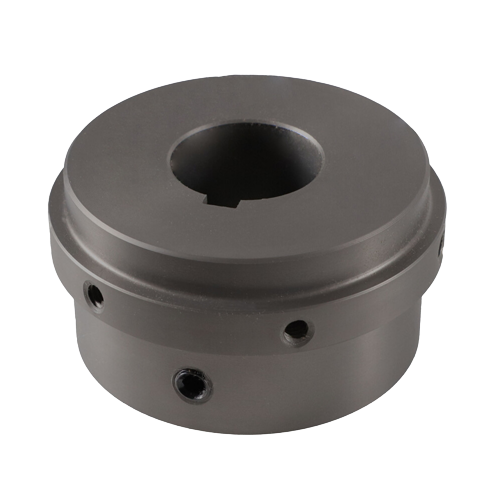

The TB Woods WE10H-1 3/8 is a Size WE10 Dura-Flex BTS (Bore-To-Size) coupler hub engineered for dependable, flexible shaft coupling in a wide range of HVAC and industrial power transmission applications. Manufactured from low carbon steel, this hub delivers the strength and durability required for demanding mechanical drive systems while remaining easy to machine and install.
Key Features
- Size WE10 Dura-Flex BTS (Bore-To-Size) coupler hub
- Low carbon steel construction for strength and machinability
- 1-3/8″ finished bore diameter for precise shaft fit
- 5/16″ x 5/32″ keyseat for positive torque transmission
- Part of TB Woods’ trusted Dura-Flex flexible coupling system
- Designed to accommodate misalignment and dampen vibration in drive systems
Product Specifications
- Brand: TB Woods
- SKU: WE10H-1 3/8
- Coupling Series: Dura-Flex BTS
- Size: WE10
- Material: Low Carbon Steel
- Bore Diameter: 1-3/8″
- Keyseat: 5/16″ x 5/32″
Application
The TB Woods Dura-Flex coupling system is widely used in HVAC, pump, compressor, fan, and general industrial drive applications. The flexible element design helps absorb shock loads, reduce vibration transmission, and compensate for minor shaft misalignment, extending the service life of connected equipment. The BTS (Bore-To-Size) designation indicates the hub is finish-bored to the specified diameter and ready for installation.
