Description

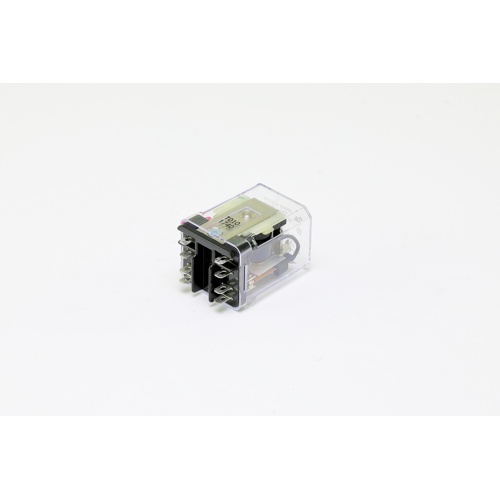

The TE Connectivity KUP-11A15-120 is a general purpose, panel plug-in enclosed relay engineered for reliable switching performance in HVAC controls, building automation, and industrial electrical applications. Featuring a Double-Pole Double-Throw (DPDT) contact configuration, this relay delivers dependable operation with a 120VAC coil voltage and a 10-amp contact rating, making it well suited for controlling loads such as fans, pumps, compressors, and auxiliary control circuits.
The KUP-11A15-120 is housed in a rugged enclosed case designed for socket mount installation, allowing for quick field replacement without rewiring. The relay supports both quick-connect and solder terminal options, offering installation flexibility across a wide range of panel and enclosure configurations.
Key Features
- Double-Pole Double-Throw (DPDT) contact configuration
- 120VAC coil voltage for direct line-voltage control circuit compatibility
- 10-amp contact rating for general purpose load switching
- Panel plug-in, socket mount case design for easy installation and replacement
- Quick-connect and solder terminal options for wiring flexibility
- Enclosed relay housing for protection against dust and debris
- Designed for use in HVAC controls, building automation, and industrial panel applications
Specifications
- Brand: TE Connectivity
- Model / SKU: KUP-11A15-120
- Contact Form: DPDT (Double-Pole Double-Throw)
- Coil Voltage: 120VAC
- Contact Rating: 10 Amps
- Mounting Style: Panel Plug-In / Socket Mount
- Terminal Type: Quick-Connect / Solder
- Enclosure: Enclosed Case
Common Applications
- HVAC control panels and air handling units
- Building automation and energy management systems
- Fan, pump, and compressor switching circuits
- Industrial control panels and electrical enclosures
- General purpose relay replacement and retrofit applications
