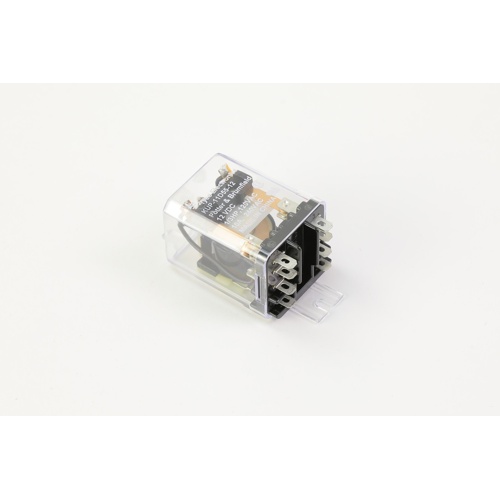

TE Connectivity KUP-11D55-12 General Purpose Enclosed Relay
The TE Connectivity KUP-11D55-12 is a rugged, general purpose enclosed relay engineered for reliable switching performance in HVAC control panels, building automation systems, and a wide range of electrical applications. With a 12Vdc coil voltage and a 10-amp contact rating, this relay delivers dependable operation across demanding control circuit environments.
Key Features
- Double Pole Double Throw (DPDT) contact configuration for versatile switching control
- 12Vdc coil voltage for compatibility with low-voltage HVAC and building automation control circuits
- 10-amp contact rating suitable for general purpose load switching
- Panel plug-in design for easy installation and field replacement without rewiring
- Fully enclosed relay case protects internal contacts from dust, debris, and environmental contaminants
- Quick-connect and solder terminal options provide installation flexibility
- Bracket mount case for secure, vibration-resistant panel mounting
Applications
- HVAC control panels and zone control systems
- Building automation and energy management systems
- Fan, pump, and blower switching circuits
- General purpose industrial and commercial control applications
Product Specifications
- Brand: TE Connectivity
- Part Number: KUP-11D55-12
- Contact Form: DPDT (Double Pole Double Throw)
- Coil Voltage: 12Vdc
- Contact Rating: 10 Amps
- Mounting Style: Panel Plug-In with Bracket Mount Case
- Enclosure: Enclosed
- Terminal Type: Quick-Connect / Solder
