Description

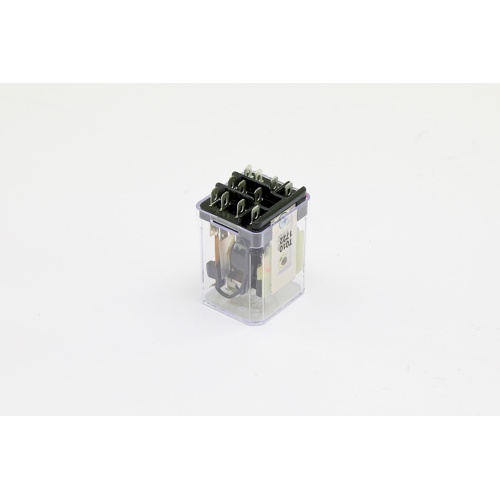

The TE Connectivity KUP-14A15-24 is a reliable general purpose enclosed relay engineered for demanding HVAC and industrial control panel applications. With a 3PDT (3-Pole Double-Throw) contact configuration, this relay delivers versatile switching capability across three independent circuits simultaneously, making it an ideal choice for complex control logic, fan staging, damper control, and auxiliary equipment switching.
Key Features
- 3PDT (3-Pole Double-Throw) contact configuration for multi-circuit switching
- 24VAC coil voltage — compatible with standard HVAC low-voltage control systems
- 10 Amp contact rating for reliable load switching
- Panel plug-in design for quick installation and easy field replacement
- Socket mount case for secure, vibration-resistant panel mounting
- Quick-connect and solder terminals for flexible wiring options
- Enclosed relay housing protects internal components from dust and debris
Product Specifications
- SKU: KUP-14A15-24
- Brand: TE Connectivity
- Contact Form: 3PDT (3-Pole Double-Throw)
- Coil Voltage: 24VAC
- Contact Current Rating: 10 Amps
- Mounting Style: Socket Mount / Panel Plug-in
- Terminal Type: Quick-connect / Solder
- Enclosure: Enclosed (sealed housing)
Applications
- HVAC control panels and air handling unit controls
- Fan staging and multi-speed motor control
- Damper actuator switching circuits
- Boiler and hydronic system sequencing
- General purpose industrial and commercial control panels
- Building automation and energy management systems
Why Choose the TE Connectivity KUP-14A15-24?
TE Connectivity is a globally recognized leader in connectivity and sensor solutions, and the KUP series relays are trusted by HVAC technicians and controls engineers for their consistent performance and long service life. The plug-in socket mount design allows for fast field replacement without rewiring, minimizing system downtime. The dual terminal option — quick-connect and solder — gives installers the flexibility to match their preferred wiring method or panel requirements.
