Description

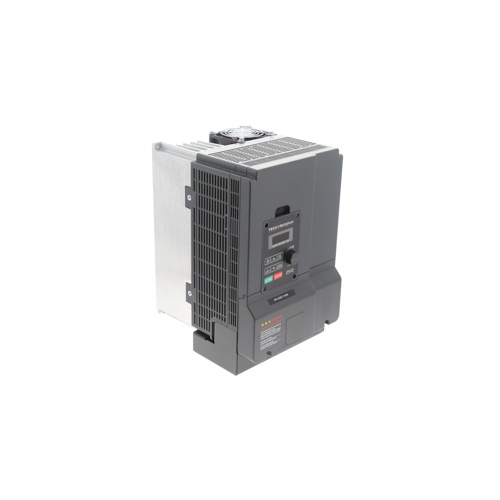

TECO-Westinghouse E510-210-H3-U Variable Frequency Drive Overview
The TECO-Westinghouse E510-210-H3-U is a compact, high-performance Variable Frequency Drive (VFD) engineered for demanding HVAC and industrial motor control applications. Rated at 10 horsepower with a 200–240VAC, 3-phase input and output, this drive delivers smooth, energy-efficient speed regulation for fans, pumps, compressors, and other motor-driven equipment.
Key Features
- 10HP (horsepower) power rating for medium-duty motor control applications
- 200–240VAC, 3-phase input and output voltage range
- Compact E510 series design for flexible panel or wall-mount installation
- Variable torque and constant torque operating modes to suit a wide range of loads
- Built-in EMI filter for reduced electrical noise and improved system compatibility
- Advanced V/F control and sensorless vector control for precise speed regulation
- Integrated PID controller for closed-loop process control (ideal for HVAC fan and pump applications)
- Multiple programmable digital and analog I/O for seamless BAS/BMS integration
- Built-in RS-485 Modbus RTU communication for remote monitoring and control
- Comprehensive protective functions including over-current, over-voltage, under-voltage, and thermal overload protection
- UL listed for use in North American installations
HVAC & Commercial Applications
- Variable air volume (VAV) fan speed control
- Chilled water and condenser water pump control
- Cooling tower fan modulation
- Air handling unit (AHU) supply and return fans
- Exhaust and ventilation fans
- Compressor soft-start and speed control
Why Choose the TECO-Westinghouse E510 Series
The E510 series is trusted by HVAC professionals and mechanical contractors for its reliability, ease of commissioning, and energy-saving performance. By precisely matching motor speed to system demand, the E510-210-H3-U can significantly reduce energy consumption compared to fixed-speed motor operation — delivering measurable cost savings over the life of the equipment.
Specifications
- SKU: E510-210-H3-U
- Brand: TECO-Westinghouse
- Series: E510
- Horsepower: 10HP
- Input/Output Voltage: 200–240VAC
- Phase: 3-Phase
- Drive Type: Variable Frequency Drive (VFD)
