Description

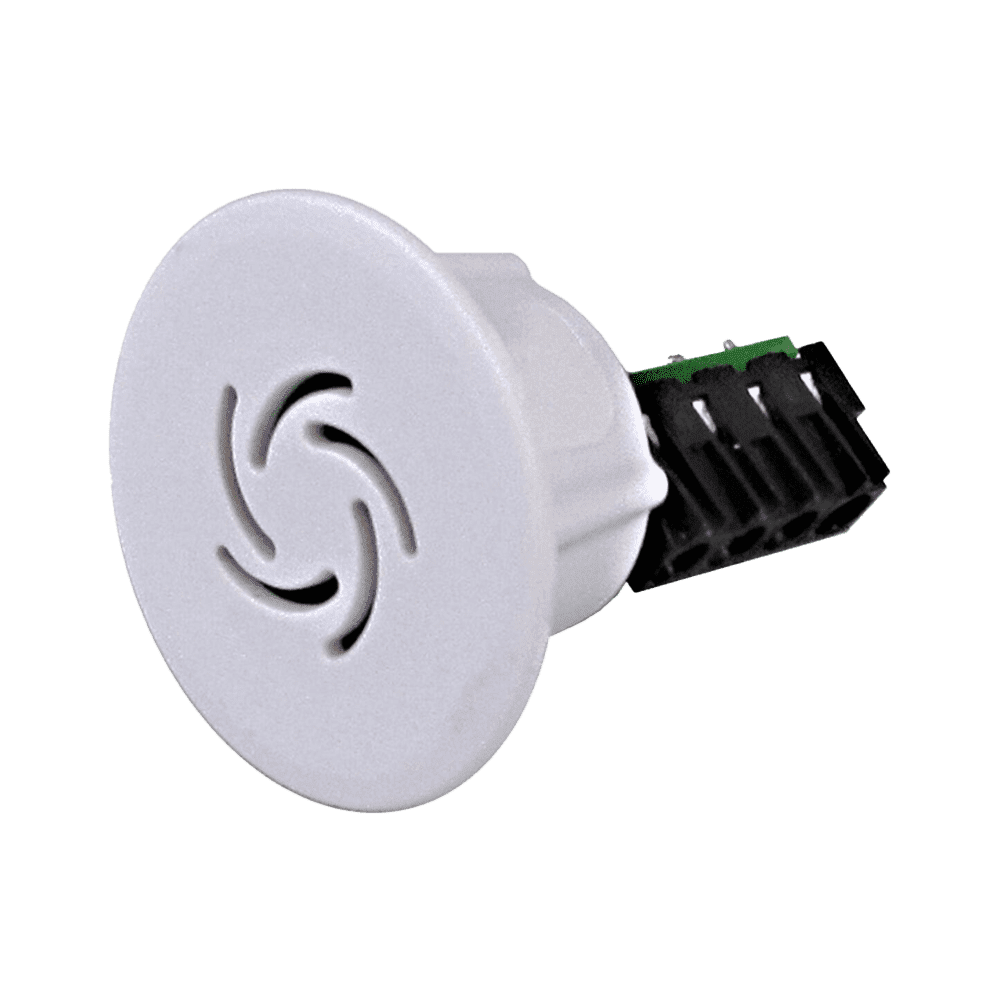

The Humidity and Temperature Sensor 086 can be connected to select tekmar thermostats to remotely measure relative humidity and temperature. The 086 mounts flush or nearly flush to the wall to allow the sensor to visually blend in with the surrounding wall.
Features:
- Compatible with tekmar thermostats that support auxiliary humidity sensors
- Hidden humidity and temperature sensing
- Dimensions: 1-7/16″ O.D. x 1-9/16″ D (36 O.D. x 40 mm D)
- Enclosure NEMA Rating: NEMA 1
- Operating Range: Indoor use only, 15 to 140 degrees F (-10 to 60 degrees C), non-condensing
- Power Supply: 2.7 to 5.5 V (dc), 0.5 mA max, 65 k ohms min impedance
- Sensor: Temperature sensor NTC thermistor, 10 k ohms at 7
