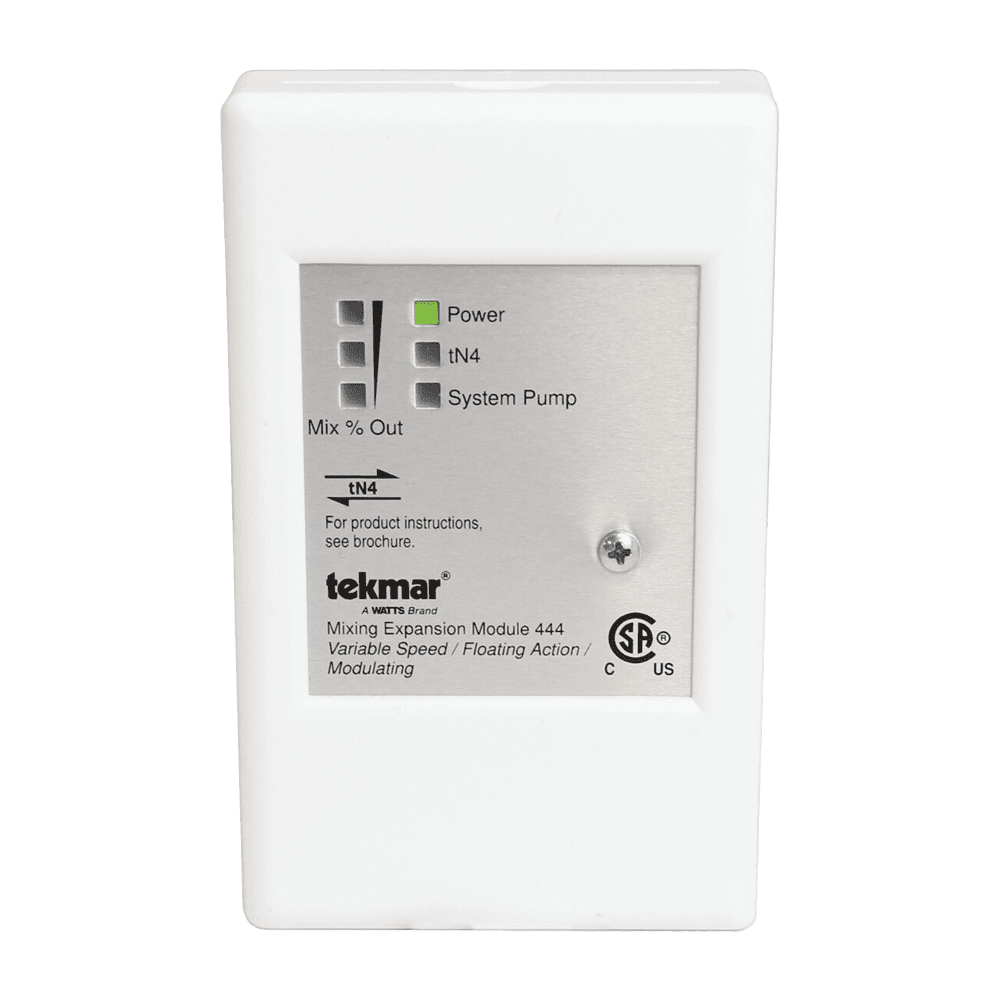

Tekmar 444 Mixing Expansion Module, Variable Speed, Floating Action, Modulating

Description

The Tekmar 444 Mixing Expansion Module is engineered to operate mixing devices within hydronic heating systems as part of a tekmarNet® control system. This module can effectively control a mixed system pump along with six optional outputs, including a variable speed injection pump, a floating action actuator, or an analog output (0-10 V dc, 2-10 V dc, 0-20 mA, or 4-20 mA).

Features include:

• Requires a tekmarNet 4 system control for seamless integration
• Powered variable speed injection pump for optimized flow control
• 24 V (ac) powered floating action output for enhanced reliability
• Analog outputs (0-20 mA, 4-20 mA, 0-10 V dc, 2-10 V dc) for versatile application
• Supports powered 120 V (ac) and 24 V (ac) system pump outputs
• CSA C US certified for safe operation in the USA and Canada

The Tekmar 444 Mixing Expansion Module is an essential component for achieving efficient temperature control and improved performance in hydronic heating applications.
