Description

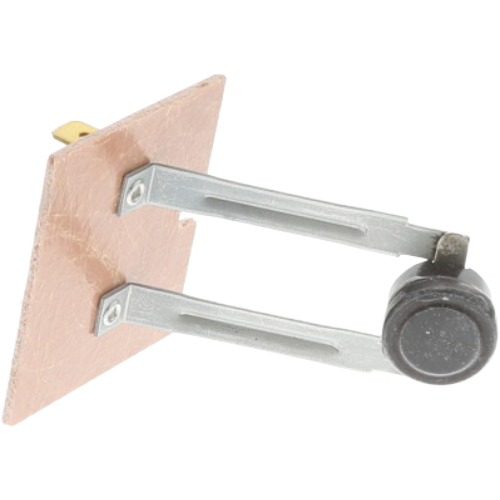

The Texas Furnace (Consolidated Industries) 4035003 is an OEM replacement L190-20F high-limit switch engineered to protect your furnace from overheating conditions. Designed as a direct replacement for compatible Texas Furnace and Consolidated Industries heating systems, this limit switch delivers reliable, repeatable performance to keep equipment operating safely and efficiently.
How It Works
The L190-20F limit switch monitors heat exchanger temperatures and opens the control circuit when temperatures reach the upper limit setpoint, shutting off the burner to prevent damage. Once temperatures drop to the reset point, the switch automatically closes and restores normal furnace operation — no manual reset required under normal cycling conditions.
Key Specifications
- Part Number: 4035003
- Model: L190-20F
- Open (Trip) Temperature: 190°F
- Differential: 20°F
- Reset Temperature: 170°F
- Compatible Brand: Texas Furnace / Consolidated Industries
- Function: Automatic reset high-limit switch
Features & Benefits
- OEM-specified replacement for Texas Furnace and Consolidated Industries furnace models
- Automatic reset operation for convenient, low-maintenance performance
- Precise temperature trip point helps prevent heat exchanger damage and nuisance shutdowns
- Durable construction built to withstand the demanding thermal environment inside a furnace cabinet
- Direct drop-in replacement simplifies installation and reduces service time
Application
This limit switch is intended for use in residential gas furnaces manufactured by Texas Furnace (Consolidated Industries). Always verify compatibility with the original equipment model number before installation. Consult the furnace service manual for proper wiring, mounting location, and torque specifications.
