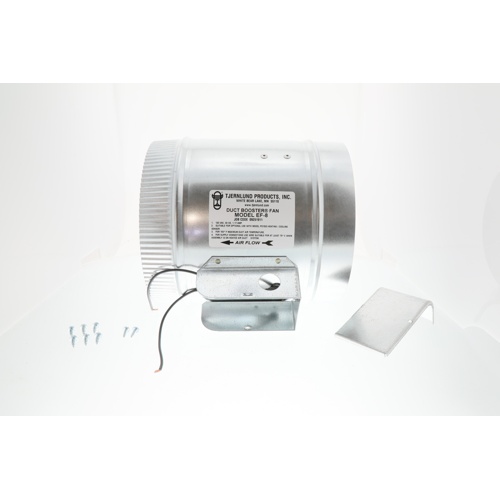

Tjernlund Products EF-8 8-Inch Duct Booster Supply & Exhaust Fan

Description

The Tjernlund EF-8 is an 8-inch duct booster fan designed to increase airflow through HVAC ductwork or provide ventilation for non-combustible air and fumes. It can be installed in metal or flexible duct and is suitable for supply air, exhaust, and air-intake applications.

The EF-8 features a heavy-gauge housing, metal fan blade, and C-frame motor for dependable airflow performance. The fan motor is designed to be connected to an appropriate control or sensing device rather than simply plugged directly into a wall outlet.

Features

• Model: EF-8
• 8-inch duct connection
• 120V
• 56 watts
• 1.10 amps
• Metal fan blade
• C-frame motor
• Up to 325 CFM depending on duct configuration
• Suitable for supply, exhaust, or air-intake applications
• Installs in metal or flexible duct
• Compatible with optional airflow/sensing controls

Important: The EF-8 fan assembly and automatic control components are separate components. Verify the included components before installation.
