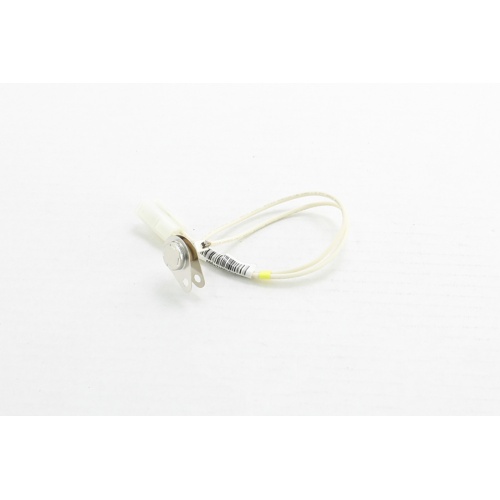

Trane CNT3784 Limit Switch Overview
The Trane CNT3784 is an OEM limit switch engineered to provide dependable high-temperature protection in Trane heating systems. Designed with a 210°F trip point, this switch monitors supply-air or heat exchanger temperatures and interrupts the circuit when unsafe conditions are detected — helping prevent equipment damage, nuisance shutdowns, and potential safety hazards.
Key Features
- 210°F (99°C) trip temperature for accurate overheat detection
- SPST (Single-Pole Single-Throw) circuit configuration
- Normally Closed (NC) contact state — opens on temperature rise
- Automatic (Auto) reset — restores operation once temperature drops to safe level
- OEM Trane replacement part for precise fit and performance
- Designed for use in Trane gas furnaces and air handlers
Why Use an OEM Limit Switch?
Using a genuine Trane OEM limit switch ensures compatibility with the original equipment design. Aftermarket substitutes may have different calibration tolerances, contact ratings, or mounting configurations that can compromise system safety and warranty compliance. The CNT3784 is built to Trane’s exact specifications, giving technicians confidence in every installation.
Application
- Trane gas furnaces and heating systems
- Supply-air temperature limiting
- Heat exchanger overheat protection
- Replacement for failed or out-of-calibration limit switches
Installation Notes
Always de-energize the unit before replacing a limit switch. Verify the mounting orientation and wiring connections match the original component. After installation, cycle the system and confirm normal operation before returning the unit to service.
