Description

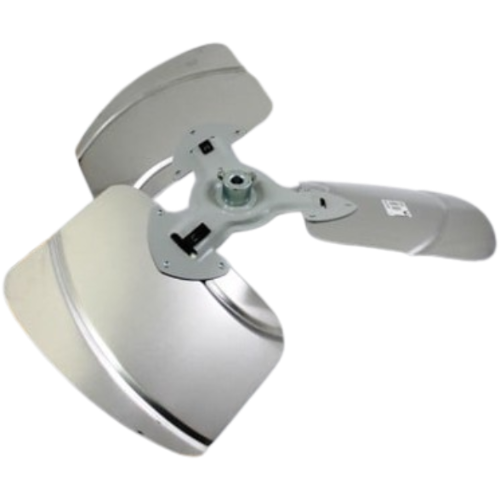

The Trane FAN1509 is an OEM-replacement fan blade engineered to restore peak airflow performance in Trane HVAC systems. With a 22-inch diameter, 24-degree blade pitch, and counter-clockwise (CCW) rotation, this three-blade assembly is precision-designed to move air efficiently through condenser and evaporator coil sections. The 1/2-inch bore ensures a secure, properly centered fit on compatible motor shafts, minimizing vibration and extending the service life of both the blade and motor.
Built to Trane’s exacting OEM specifications, the FAN1509 is the trusted choice for HVAC technicians performing scheduled maintenance or emergency replacements on Trane residential and light commercial equipment.
Key Specifications
- Diameter: 22 inches
- Blade Pitch: 24 degrees
- Number of Blades: 3
- Rotation: Counter-Clockwise (CCW) — viewed from the air discharge side
- Bore Size: 1/2 inch
- Brand: Trane
- SKU / Part Number: FAN1509
Features & Benefits
- OEM Trane replacement for guaranteed compatibility and fit
- 24-degree pitch optimizes airflow volume and static pressure performance
- Three-blade design balances efficient air movement with quiet operation
- Counter-clockwise rotation matches factory motor shaft direction for correct installation
- 1/2″ bore provides a secure, vibration-resistant mount on the motor shaft
- Durable construction for long-lasting performance in outdoor condenser applications
Applications
- Trane residential and light commercial air conditioning systems
- Condenser fan blade replacement and scheduled maintenance
- Compatible with Trane equipment requiring a 22″ CCW fan blade with 1/2″ bore
Installation Notes
Always verify rotation direction and bore size against the existing fan blade or equipment service manual before installation. Confirm shaft diameter compatibility and ensure the set screw or hub fastener is properly torqued to prevent slippage during operation.
