Description

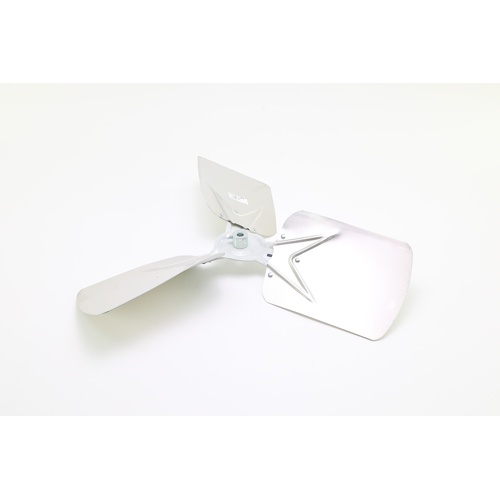

The Trane FAN1567 is an OEM replacement fan blade engineered to restore peak airflow performance in Trane condensing units and air-handling equipment. With a 26-inch diameter, 32-degree blade pitch, and three-blade configuration, this fan blade is precision-balanced to deliver consistent, efficient air movement across the heat exchange coil.
Key Features
- 26″ blade diameter for broad airflow coverage
- 32-degree blade pitch optimized for high-volume air delivery
- 3-blade design balances airflow efficiency with low noise operation
- Clockwise (CW) rotation — verify motor shaft rotation before installation
- 1/2″ bore hub mounted on the intake side for correct airflow direction
- OEM Trane replacement part for reliable, like-for-like performance
Application
Designed as a direct OEM replacement for Trane condensing units and rooftop equipment requiring a 26-inch, 3-blade fan assembly. Always confirm unit model compatibility and motor rotation direction prior to installation.
Specifications
- SKU: FAN1567
- Brand: Trane
- Blade Diameter: 26 inches
- Blade Pitch: 32 degrees
- Number of Blades: 3
- Rotation: Clockwise (CW)
- Bore Size: 1/2 inch
- Bore Location: Intake Side
