Description

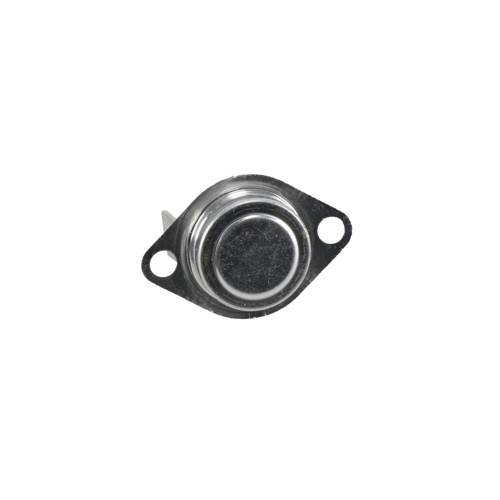

The Trane SWT3964 is an OEM inducer limit switch engineered to protect furnace inducer assemblies from overheating conditions. Designed as a direct factory replacement for compatible Trane heating systems, this limit switch monitors flue-gas and inducer temperatures, automatically interrupting the circuit when unsafe heat levels are detected and resetting once temperatures return to a safe range.
How It Works
The SWT3964 operates as a normally closed (NC) thermal limit device. When inducer temperatures rise to the open setpoint, the switch opens the control circuit, shutting down the burner to prevent heat exchanger damage or component failure. Once temperatures cool to the close setpoint, the switch automatically resets, restoring normal operation.
Temperature Setpoints
- Open (Trip) Temperature: 155°F
- Close (Reset) Temperature: 125°F
Key Features
- OEM Trane replacement part — ensures proper fit and function
- Automatic reset design — reopens circuit at 155°F, resets at 125°F
- Protects inducer motor and heat exchanger from thermal damage
- Designed for use in Trane forced-air furnace inducer assemblies
- Reliable bimetal or disc-type sensing element for consistent performance
- Direct drop-in replacement — no modifications required
Application
The SWT3964 is intended for use in Trane residential and light-commercial gas furnaces equipped with induced-draft blower assemblies. Always verify compatibility with your specific furnace model before installation. Consult the equipment service manual for proper mounting location and wiring procedures.
