Description

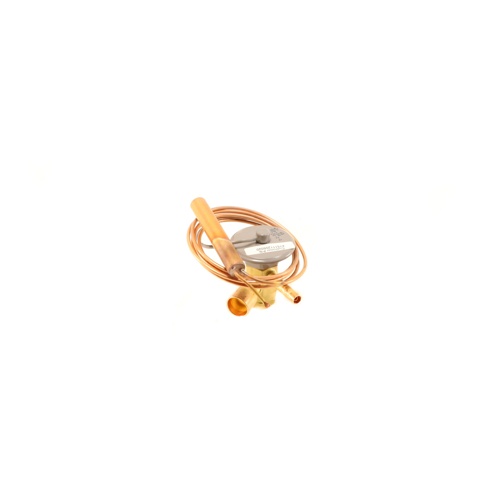

The Trane VAL6383 is an OEM-quality Thermostatic Expansion Valve (TXV) engineered for dependable refrigerant metering in R-22 residential and light-commercial cooling systems. Rated for 2-ton capacity, this valve features 1/2″ inlet and 5/8″ outlet connections along with a 60″ capillary tube, providing the installation flexibility needed to reach remote sensing bulb locations in a wide variety of air handler and evaporator coil configurations.
As a precision metering device, the TXV continuously modulates refrigerant flow in response to evaporator superheat, protecting the compressor from liquid slugging while maximizing system efficiency and comfort. The extended 60″ capillary tube allows the sensing bulb to be positioned accurately on the suction line without stressing connections or compromising sensing accuracy.
Key Features
- OEM Trane replacement TXV for accurate, drop-in serviceability
- Designed for R-22 refrigerant systems
- 2-ton capacity rating for residential and light-commercial applications
- 1/2″ inlet x 5/8″ outlet connection sizes
- 60″ capillary tube for flexible sensing bulb placement
- Maintains precise superheat control to protect compressor integrity
- Helps maximize system efficiency and cooling performance
Specifications
- SKU: VAL6383
- Brand: Trane
- Valve Type: Thermostatic Expansion Valve (TXV)
- Refrigerant: R-22
- Capacity: 2 Ton
- Inlet Connection: 1/2″
- Outlet Connection: 5/8″
- Capillary Tube Length: 60″
Application
The VAL6383 is suited for use in Trane split-system air conditioners and heat pumps utilizing R-22 refrigerant. Always verify compatibility with the existing equipment model and system design before installation. Proper torque, refrigerant recovery, and evacuation procedures should be followed in accordance with EPA regulations and local codes.
