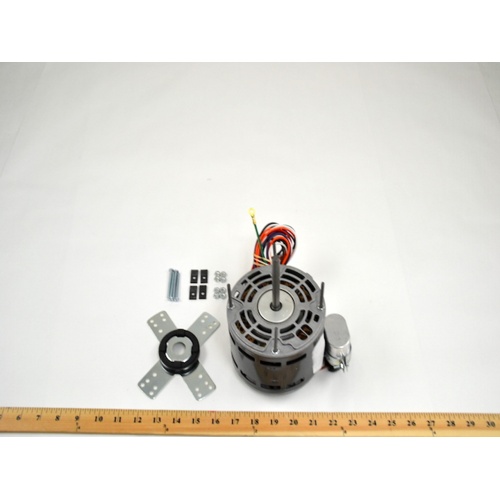

US Motors 1471P Blower Motor Overview
The US Motors 1471P is a reliable Permanent Split Capacitor (PSC) blower motor engineered for demanding HVAC air-handling applications. Designed with a dual-voltage capability and an open dripproof, air-over enclosure, this motor delivers consistent performance in a wide range of residential and light commercial blower assemblies.
Electrical Specifications
- Horsepower: 1/10 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Amperage: 1.7A (115V) / 0.8A (208-230V)
- Motor Type: Permanent Split Capacitor (PSC)
- Speeds: 1 Speed
Mechanical Specifications
- Speed: 1050 RPM
- NEMA Frame Size: 42Y
- Enclosure Type: Open Dripproof (ODP), Air Over
- Bearing Type: SAB (Sleeve/Ball)
- Mounting: Hub or Stud Mount
Key Features & Benefits
- Dual-voltage design (115/208-230V) offers installation flexibility across a variety of systems
- Permanent Split Capacitor motor type provides quiet, efficient operation ideal for continuous-duty blower applications
- 42Y NEMA frame ensures broad OEM and replacement compatibility
- Open Dripproof, Air Over enclosure is optimized for use in airstreams, protecting internal components while maximizing cooling
- SAB bearing construction supports reliable, long-service-life operation
- Hub or stud mount options allow flexible installation in various blower housings
- Single-speed, 1050 RPM rating suits standard residential and commercial air handler and fan coil applications
Typical Applications
- Residential and commercial air handlers
- Fan coil units
- Evaporator blower assemblies
- HVAC blower wheel drives requiring a 42Y frame motor
