Description

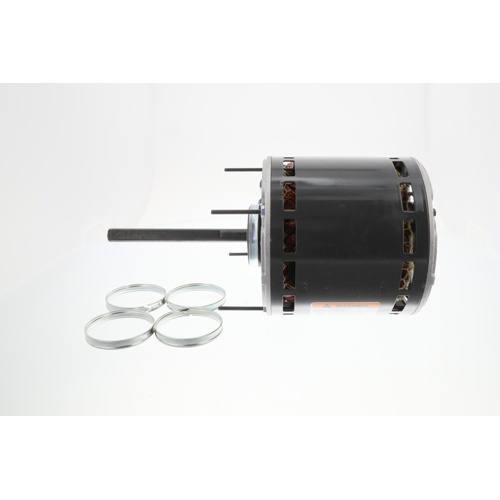

The US Motors 1694 is a dependable permanent split capacitor (PSC) motor engineered for demanding HVAC blower and fan applications. Built around a 48YZ NEMA frame, this motor delivers reliable, efficient airflow control in residential and light commercial systems.
Key Specifications
- Horsepower: 1/2 HP
- Voltage: 115V AC
- Phase: Single Phase
- Speed: 1625 RPM, 3-Speed
- Amperage: 5.5 Amps
- NEMA Frame Size: 48YZ
- Enclosure Type: Open Air Over (OAO)
- Bearing Type: Sleeve Bearing
- Shaft Diameter: 1/2 inch
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
- Mount Type: Ring or Stud Mount
Product Highlights
- Three-speed operation provides flexible airflow and system performance matching
- Reversible rotation allows versatile installation configurations
- Ring or stud mount design simplifies replacement and retrofit installations
- Open Air Over (OAO) enclosure promotes effective motor cooling in airstream applications
- Sleeve bearing construction offers quiet, smooth operation suited for continuous-duty HVAC use
- 48YZ NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket applications
- PSC motor design delivers energy-efficient, reliable starting and running performance
Typical Applications
- Residential and light commercial furnace blowers
- Air handler fan assemblies
- Multi-speed HVAC blower motor replacements
- Fan coil unit motors
The US Motors 1694 is an ideal direct-drive replacement motor for HVAC technicians seeking a proven, versatile solution. Its multi-speed capability, reversible rotation, and standard 48YZ frame make it a go-to choice for a wide range of blower motor replacement applications.
