Description

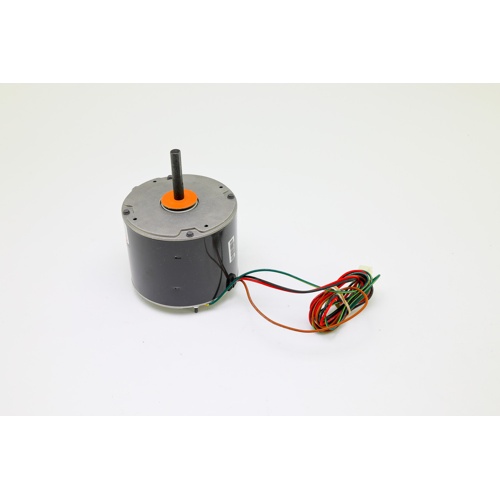

The US Motors 1743 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for demanding HVAC and air-over applications. Built around a 48Y NEMA frame and housed in a Totally Enclosed Air Over (TEAO) enclosure, this motor delivers consistent, reliable performance in condenser fan and evaporator fan environments where airflow over the motor is the primary cooling source.
Motor Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 850 RPM
- Full Load Amps: 1.5 Amps
- NEMA Frame Size: 48Y
- Motor Type: Permanent Split Capacitor (PSC)
Construction & Mounting
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Self-Aligning Ball Bearing
- Mounting Style: Stud Mount
- Shaft Diameter: 1/2″
- Rotation: Clockwise (CW) from Lead End
Key Features & Benefits
- Totally Enclosed Air Over enclosure protects internal components from dust, debris, and moisture in outdoor or harsh environments
- Self-aligning ball bearings compensate for minor shaft misalignment, extending motor service life and reducing vibration
- PSC design provides smooth, efficient starting and running performance without a start capacitor relay
- Low 850 RPM operating speed is ideal for low-noise, low-velocity fan applications
- 48Y NEMA frame ensures broad cross-reference compatibility with OEM and replacement installations
- Stud mount configuration simplifies installation in condenser fan decks and air-handling equipment
- 1/2″ shaft diameter accommodates standard fan blade hubs and pulleys
Typical Applications
- Condenser fan motors on commercial and residential HVAC equipment
- Evaporator fan motor replacements
- Air-over fan duty applications requiring a TEAO-rated motor
- OEM replacement in systems specifying a 48Y frame stud-mount PSC motor
The US Motors 1743 is a trusted choice for HVAC contractors and technicians seeking a durable, drop-in replacement motor that meets the performance demands of air-over fan duty service.
