Description

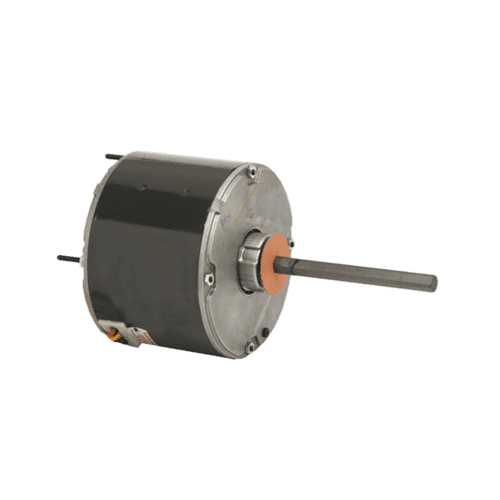

US Motors 1860 1/4HP 1075RPM 208-230V Split Capacitor Condenser Fan, Enclosed, Air Over
Features:
- 140°F (60°C) Ambient Design
- Bearings Have All Angle Thrust System
- Class B Insulation
- Suitable for Use With 370V Capacitors
- Extended Studs
- 30″ Leads
- Hubless Lead End
- Drain Holes Both Ends
- Reversible Rotation (Unless otherwise noted)
- Automatic Reset Thermal Overload Protector
- Continuous Duty
Specs:
- HORSEPOWER: 1/4
- RPM: 1075RPM
- HERTZ: 60
- VOLTS PRIMARY: 208-230
- VOLTS: 208
- VOLTS 2: 230
- FRAME: 48
- SHAFT CODE: Y
- STACK: 1.375
- MOUNTING: STUD/BAND
- MOTOR TYPE: FHP
- AMBIENT: 60C
- ROTATION: CCW LEAD END REV
- SERVICE FACTOR: 1
- RUNCAPMFD: 5
- RUNCAPVOLTS: 370
- THERMAL PROTECTION: AUTOMATIC RESET
- FULL LOAD AMPS PRIMARY: 1.5
