Description

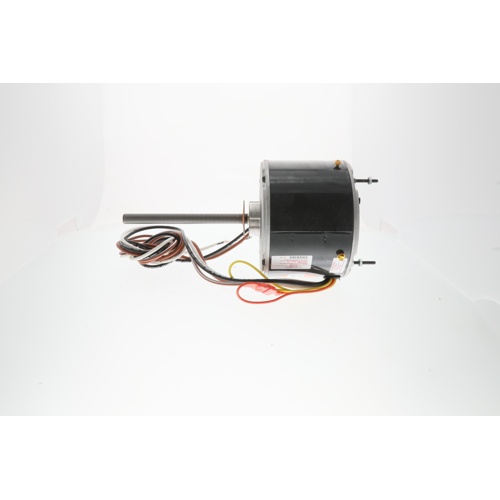

The US Motors 1860H is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable, long-life performance in residential and light commercial air conditioning applications. Built to withstand the demanding outdoor environment of condenser sections, this motor delivers consistent airflow and efficient operation season after season.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 1.7 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/4 HP
- Speed: 1075 RPM
- NEMA Frame Size: 48Y
- Bearing Type: 6201
- Mounting: Stud/Band Mount
Enclosure & Construction
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Designed for outdoor condenser fan duty
- Rugged construction for extended service life in harsh environments
Key Features & Benefits
- PSC motor design provides smooth, efficient operation with low starting current
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from dirt, moisture, and debris
- 48Y NEMA frame ensures broad OEM and aftermarket compatibility
- 6201 bearing delivers dependable, low-friction performance
- Stud/Band mount configuration simplifies installation and replacement
- Ideal for use in residential and light commercial condensing units
Application
The US Motors 1860H is designed as a direct replacement or upgrade condenser fan motor for a wide range of split-system air conditioners and heat pumps. Its TEAO enclosure and durable bearing make it well-suited for year-round outdoor duty, while the standard 48Y NEMA frame and stud/band mounting ensure straightforward installation across many common condenser configurations.
