Description

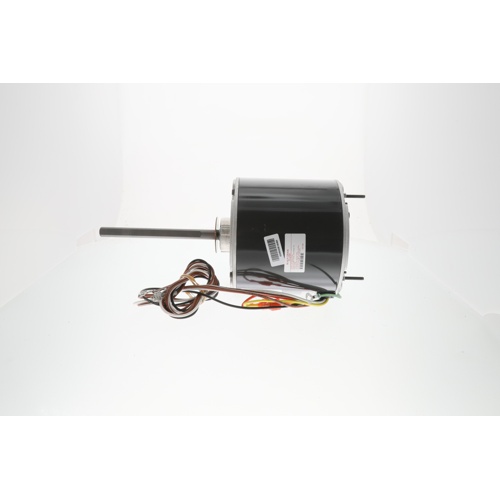

The US Motors 1880 is a heavy-duty permanent split capacitor (PSC) condenser fan motor engineered for reliable, long-lasting performance in commercial and residential HVAC condensing units. Built to handle the demanding conditions of outdoor condenser applications, this motor delivers consistent airflow and efficient operation season after season.
Electrical Specifications
- Voltage: 460 VAC
- Phase: Single Phase
- Full Load Amps: 1.0 Amps
- Motor Type: Permanent Split Capacitor (PSC)
- Horsepower: 1/4 HP
Mechanical Specifications
- Speed: 825 RPM
- NEMA Frame Size: 48Y
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Bearing Type: Ball Bearing
- Mounting: Stud or Band Mount
Enclosure & Construction
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Designed for outdoor condenser fan duty
- Rugged construction for extended service life
Key Features & Benefits
- Permanent split capacitor design for smooth, efficient starting and running
- Ball bearings provide low-friction operation and extended motor life
- Reversible rotation offers installation flexibility for multiple condenser configurations
- Stud or band mount compatibility simplifies replacement and retrofit applications
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from contaminants in outdoor environments
- 48Y NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket condenser units
- Low 1.0-amp draw at 460V supports energy-conscious system design
Typical Applications
- Residential and light commercial air conditioning condensing units
- Heat pump outdoor sections
- Condenser fan motor replacement and retrofit
