Description

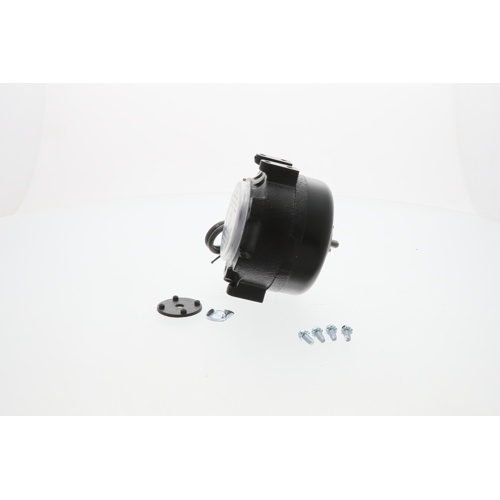

The US Motors 2123 is a reliable shaded pole unit bearing fan motor engineered for demanding HVAC and light commercial applications. Designed for long-lasting, low-maintenance operation, this motor features a permanently lubricated bearing that eliminates the need for routine re-lubrication, reducing downtime and service costs.
Key Specifications
- Power: 4 Watts
- Voltage: 230VAC
- Speed: 1,550 RPM
- Current Draw: 0.2 Amps
- Enclosure Type: Totally Enclosed
- Bearing Type: Permanently Lubricated Unit Bearing
- Shaft Diameter: 1/4″
- Rotation: Clockwise (CW), Lead End
- Motor Type: Shaded Pole
Design & Construction
The totally enclosed enclosure protects internal components from dust, debris, and moisture ingress — making the 2123 well-suited for installations in challenging environments. The shaded pole design provides simple, dependable starting without the need for external capacitors or starting components.
Application
Ideal for use in evaporator coil fans, refrigeration display cases, small HVAC fan assemblies, and other light-duty fan motor applications requiring a compact, energy-efficient motor at 230VAC.
Why Choose the US Motors 2123?
- Totally enclosed housing for superior environmental protection
- Permanently lubricated bearing for maintenance-free operation
- Low 0.2-amp draw for energy-efficient performance
- Standard 1/4″ shaft for broad compatibility
- CW lead-end rotation for direct-drive fan applications
- Trusted US Motors quality and reliability
