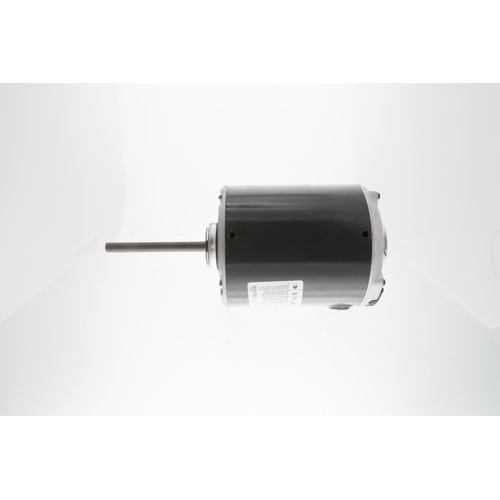

US Motors 2201 Condenser Fan Motor Overview
The US Motors 2201 is a heavy-duty condenser fan motor engineered for reliable, long-service performance in commercial and residential HVAC condensing units. Built around a Permanent Split Capacitor (PSC) design, this motor delivers smooth, efficient operation with minimal maintenance requirements — making it a trusted choice for HVAC professionals.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Single Phase
- Amperage: 3.2-3.1 A (208-230V) / 1.6 A (460V)
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/2 HP
- Speed: 1075 RPM
- NEMA Frame Size: 48
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Mounting: Ring Mount
- Bearing Type: Ball Bearing
Enclosure & Construction
- Enclosure Type: Totally Enclosed Non-Ventilated (TENV)
- TENV design protects internal components from moisture, dust, and debris common in outdoor condenser environments
- Ball bearings provide extended service life and reduced friction under continuous-duty operation
Key Features & Benefits
- Dual-voltage capability (208-230/460V) allows flexible installation across a wide range of commercial and residential systems
- Reversible rotation simplifies replacement and reduces the need for multiple motor SKUs on the job
- Ring mount design ensures secure, vibration-resistant installation in condenser fan applications
- PSC motor design delivers high efficiency and quiet operation compared to shaded-pole alternatives
- 48 NEMA frame ensures broad cross-reference compatibility with OEM condenser fan motor replacements
Typical Applications
- Air-cooled condensing units
- Rooftop HVAC equipment
- Split-system air conditioner condensers
- Commercial refrigeration condenser fans
