Description

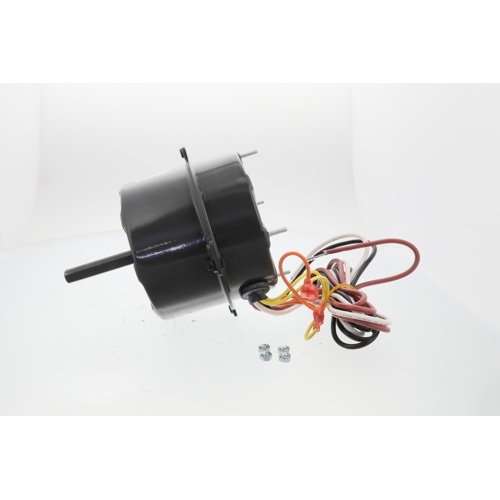

The US Motors 2243 is a purpose-built condenser fan motor engineered for reliable, long-lasting performance in air conditioning and refrigeration condensing units. Featuring a Permanent Split Capacitor (PSC) design and a Totally Enclosed Air Over (TEAO) enclosure, this motor is built to handle the demanding outdoor environments common in HVAC applications.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 0.75 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1/10 HP
- Speed: 1075 RPM
- NEMA Frame Size: 42Y
- Shaft Diameter: 1/2″
- Mounting Style: Stud Mount
- Bearing Type: Self-Aligning Sleeve Bearing
- Rotation: Reversible
Enclosure & Protection
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Designed for outdoor condenser fan applications
Key Features & Benefits
- Reversible rotation for flexible installation across a wide range of condenser units
- Self-aligning sleeve bearing reduces wear and extends motor service life
- 42Y NEMA frame ensures broad OEM and aftermarket compatibility
- PSC design delivers efficient, quiet operation with low starting current
- Stud mount configuration simplifies installation and replacement
- TEAO enclosure protects internal components from dust, debris, and moisture in outdoor settings
Application
The US Motors 2243 is ideal as a direct replacement or upgrade motor for residential and light commercial air conditioning condensing units. Its reversible rotation, standard 42Y NEMA frame, and stud mount design make it a versatile solution for a broad range of OEM and aftermarket condenser fan applications.
